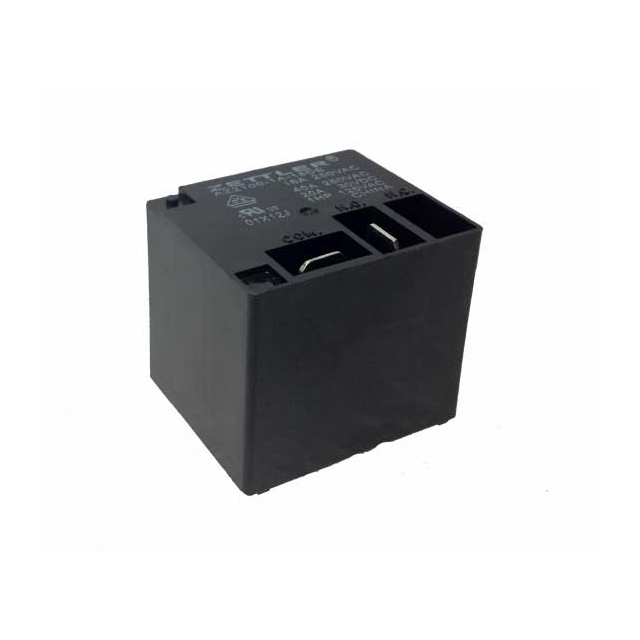

AZ2100-1A-12DEF

Active

American Zettler

RELAY GEN PURPOSE SPST 40A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AZ2100-1A-12DEF

Active

American Zettler

RELAY GEN PURPOSE SPST 40A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AZ2100-1A-12DEF

Approval Agency	cURus, VDE
Coil Current	77.4 mA
Coil Insulation	Class F
Coil Resistance	155 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	40 A
Load - Max Switching	1200 W, 12000 VA
Mounting Type	Through Hole
Must Operate Voltage	9 VDC
Must Release Voltage	1.2 VDC
Operate Time	15 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Relay Type	General Purpose
Release Time	10 ms
Seal Rating	Sealed - Fully
Switching Voltage	277 VAC, 30 VDC
Termination Style	PC Pin, Quick Connect
Termination Style	0.25 in

AZ2100-1A Series

Part	Coil Current	Must Operate Voltage	Termination Style	Termination Style	Contact Rating (Current)	Seal Rating	Must Release Voltage	Mounting Type	Approval Agency	Switching Voltage [Max]	Contact Form	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Load - Max Switching	Coil Resistance	Relay Type	Release Time	Operate Time	Contact Material	Coil Insulation	Switching Voltage
American Zettler AZ2100-1A-15DE	58.6 mA	11.25 VDC	PC Pin Quick Connect	0.25 in	40 A	Sealed - Fully	1.5 VDC	Through Hole	cURus VDE	30 VDC 300 VAC	SPST-NO (1 Form A)	15 VDC	85 °C	-55 °C	Non Latching	1200 W 12000 VA	256 Ohms	General Purpose	10 ms	15 ms	Silver Cadmium Oxide (AgCdO)	Class B
American Zettler AZ2100-1A-18DEF	47.4 mA	13.5 VDC	PC Pin Quick Connect	0.25 in	40 A	Sealed - Fully	1.8 VDC	Through Hole	cURus VDE	30 VDC 300 VAC	SPST-NO (1 Form A)	18 VDC	105 ░C	-55 °C	Non Latching	1200 W 12000 VA	380 Ohms	General Purpose	10 ms	15 ms	Silver Cadmium Oxide (AgCdO)	Class F
American Zettler AZ2100-1AE-12D	77.4 mA	9 VDC	PC Pin Quick Connect	0.25 in	40 A		1.2 VDC	Through Hole	cURus VDE	30 VDC 300 VAC	SPST-NO (1 Form A)	12 VDC	85 °C	-55 °C	Non Latching	1200 W 12000 VA	155 Ohms	General Purpose	10 ms	15 ms	Silver Tin Oxide (AgSnO)	Class B
American Zettler AZ2100-1A-12DEF	77.4 mA	9 VDC	PC Pin Quick Connect	0.25 in	40 A	Sealed - Fully	1.2 VDC	Through Hole	cURus VDE		SPST-NO (1 Form A)	12 VDC	85 °C	-55 °C	Non Latching	1200 W 12000 VA	155 Ohms	General Purpose	10 ms	15 ms	Silver Cadmium Oxide (AgCdO)	Class F	30 VDC 277 VAC
American Zettler AZ2100-1A-36DE			PC Pin Quick Connect	0.25 in	40 A	Sealed - Fully	3.6 VDC	Through Hole	cURus VDE	30 VDC 300 VAC	SPST-NO (1 Form A)	36 VDC	85 °C	-55 °C	Non Latching	1200 W 12000 VA		General Purpose	10 ms	15 ms	Silver Cadmium Oxide (AgCdO)	Class B
American Zettler AZ2100-1AE-36DE			PC Pin Quick Connect	0.25 in	40 A	Sealed - Fully	3.6 VDC	Through Hole	cURus VDE	30 VDC 300 VAC	SPST-NO (1 Form A)	36 VDC	85 °C	-55 °C	Non Latching	1200 W 12000 VA		General Purpose	10 ms	15 ms	Silver Tin Oxide (AgSnO)	Class B
American Zettler AZ2100-1AE-18D	47.4 mA	13.5 VDC	PC Pin Quick Connect	0.25 in	40 A		1.8 VDC	Through Hole	cURus VDE	30 VDC 300 VAC	SPST-NO (1 Form A)	18 VDC	85 °C	-55 °C	Non Latching	1200 W 12000 VA	380 Ohms	General Purpose	10 ms	15 ms	Silver Tin Oxide (AgSnO)	Class B
American Zettler AZ2100-1A-15DF	58.6 mA	11.25 VDC	PC Pin Quick Connect	0.25 in	40 A		1.5 VDC	Through Hole	cURus VDE	30 VDC 300 VAC	SPST-NO (1 Form A)	15 VDC	105 ░C	-55 °C	Non Latching	1200 W 12000 VA	256 Ohms	General Purpose	10 ms	15 ms	Silver Cadmium Oxide (AgCdO)	Class F
American Zettler AZ2100-1A-24DEF	36.4 mA	18 VDC	PC Pin Quick Connect	0.25 in	40 A	Sealed - Fully	2.4 VDC	Through Hole	cURus VDE		SPST-NO (1 Form A)	24 VDC	85 °C	-55 °C	Non Latching	1200 W 12000 VA	660 Ohms	General Purpose	10 ms	15 ms	Silver Cadmium Oxide (AgCdO)	Class F	30 VDC 277 VAC
American Zettler AZ2100-1A-18DE	47.4 mA	13.5 VDC	PC Pin Quick Connect	0.25 in	40 A	Sealed - Fully	1.8 VDC	Through Hole	cURus VDE	30 VDC 300 VAC	SPST-NO (1 Form A)	18 VDC	85 °C	-55 °C	Non Latching	1200 W 12000 VA	380 Ohms	General Purpose	10 ms	15 ms	Silver Cadmium Oxide (AgCdO)	Class B

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2.33
		10	$ 2.18
		25	$ 1.94
		50	$ 1.84
		240	$ 1.55
		480	$ 1.45
		1200	$ 1.36
		5040	$ 1.31

Description

General part information

AZ2100-1A Series

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
