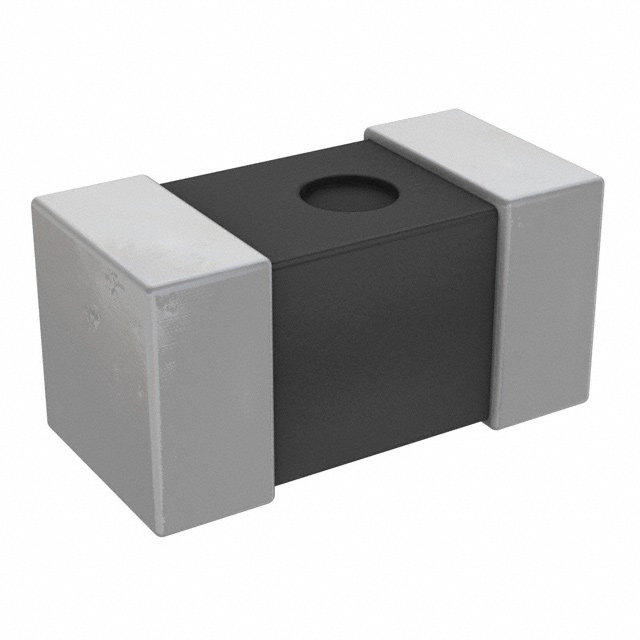

LXES03AAA1-134

Obsolete

Murata Power Solutions Inc.

TVS DIODE 6.3VWM 0603

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

TVS DIODE 6.3VWM 0603

Technical Specifications

Parameters and characteristics for this part

Specification	LXES03AAA1-134

Applications	General Purpose
Bidirectional Channels [custom]	1
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	0603 Metric
Package / Case	0201
Power Line Protection	False
Type	Zener
Voltage - Reverse Standoff (Typ)	6.3 V

Part	Mounting Type	Bidirectional Channels [custom]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Type	Voltage - Reverse Standoff (Typ)	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Voltage - Breakdown (Min) [Min]	Capacitance @ Frequency
Murata Power Solutions Inc. LXES03TAA1-143
Murata Power Solutions Inc. LXES03AAA1-134	Surface Mount	1	General Purpose	85 °C	-40 °C	0603 Metric	0201	Zener	6.3 V
Murata Power Solutions Inc. LXES03TAA1-142	Surface Mount	1	Ethernet HDMI	85 °C	-40 °C	0603 Metric	0201	Zener	5.5 V	0.3	2-CSP	0.6	7 V	5 pF
Murata Power Solutions Inc. LXES03BAA1-110	Surface Mount	1	General Purpose	85 °C	-40 °C	0603 Metric	0201	Zener	5 V				5.6 V
Murata Power Solutions Inc. LXES03AAA1-154	Surface Mount	1	General Purpose	85 °C	-40 °C	0603 Metric	0201	Zener	4 V					0.05 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Clamp Ipp Tvs Diode Surface Mount 0603
