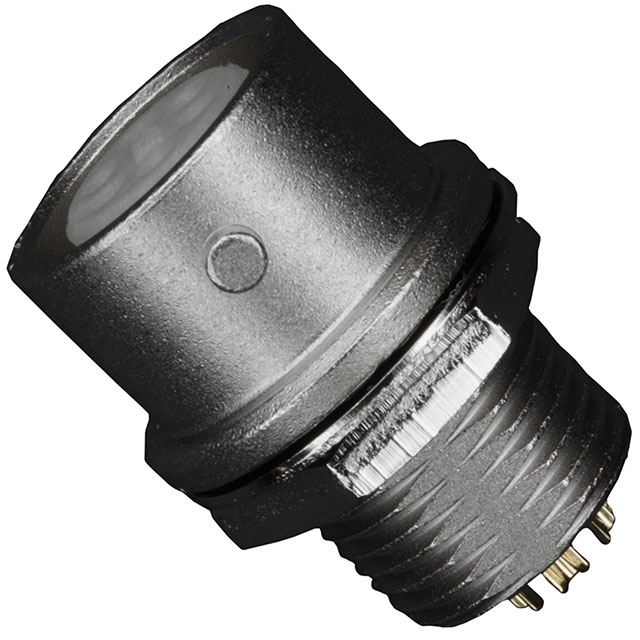

KMC9BRD-6S(75)

LTB

Hirose Electric USA, Inc.

CONN RCPT FMALE 6P GOLD SLDR CUP

Search across all available documentation for this part.

LTB

Hirose Electric USA, Inc.

CONN RCPT FMALE 6P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Color	Shell Material	Shell Size - Insert	Voltage Rating	Shell Finish	Contact Finish - Mating	Ingress Protection	Primary Material	Number of Positions	Fastening Type	Connector Type	Mounting Feature	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]
Hirose Electric USA, Inc. KMC9BRD-6S(75)	Silver	Zinc Alloy	9	100 VAC 140 VDC	Nickel	Gold	Water Resistant	Metal	6	Bayonet Lock	Receptacle Female Sockets	Bulkhead - Rear Side Nut	Keyed
Hirose Electric USA, Inc. KMC9BRD-6S(71)	Silver	Zinc Alloy	9	100 VAC 140 VDC	Nickel	Gold	Water Resistant	Metal	6	Bayonet Lock	Receptacle Female Sockets	Bulkhead - Rear Side Nut	Keyed	78.7 µin	2 µm	Phosphor Bronze	Polyacetal	-10 °C	60 °C
Hirose Electric USA, Inc. KMC9BRD-4S	Silver	Zinc Alloy	9	100 VAC 140 VDC	Nickel	Gold	Water Resistant	Metal	4	Bayonet Lock	Receptacle Female Sockets	Bulkhead - Rear Side Nut	Keyed	78.7 µin	2 µm	Phosphor Bronze	Polyacetal	-10 °C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 18.34

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical documentation and resources

No documents available
