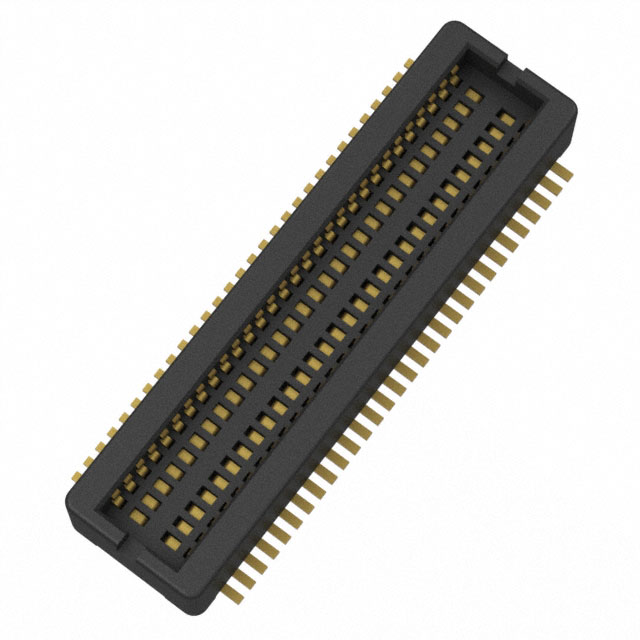

AC01S060WA1R3000

Active

JAE Electronics

CONN RCPT 60POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 60POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AC01S060WA1R3000

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Height Above Board	0.089 in
Height Above Board	2.26 mm
Mated Stacking Heights	2.5 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Rows	Number of Positions	Height Above Board	Height Above Board	Mounting Type	Pitch [x]	Pitch [x]	Contact Finish	Connector Type	Mated Stacking Heights
JAE Electronics AC01S060WA1R3000	2	60	0.089 in	2.26 mm	Surface Mount	0.5 mm	0.02 in	Gold	Receptacle Outer Shroud Contacts	2.5 mm
JAE Electronics AC01S060WA1R500	2	60	0.089 in	2.26 mm	Surface Mount	0.5 mm	0.02 in	Gold	Receptacle Outer Shroud Contacts	2.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 2.93

General part information

60 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
