DF3EA-15P-2H(21)

Active

Hirose Electric USA, Inc.

CONN HEADER SMD R/A 15POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

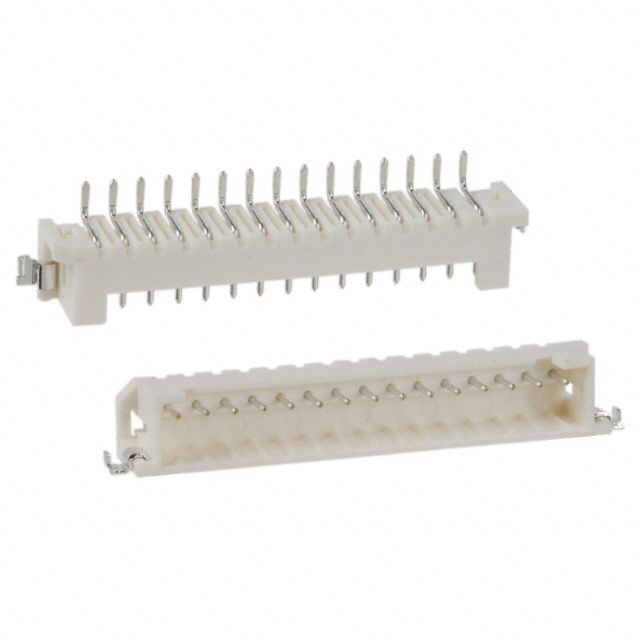

DF3EA-15P-2H(21)

Active

Hirose Electric USA, Inc.

CONN HEADER SMD R/A 15POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF3EA-15P-2H(21)

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Beige
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

DF3EA Series

Part	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Features	Material Flammability Rating	Number of Positions Loaded	Number of Rows	Mounting Type	Contact Shape	Termination	Current Rating (Amps)	Contact Material	Insulation Material	Fastening Type	Style	Insulation Color	Mated Stacking Heights	Insulation Height	Insulation Height	Voltage Rating	Number of Positions	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Hirose Electric USA, Inc. DF3EA-4P-2V(21)	Tin	105 ░C	-55 °C	Header	Male Pin	0.079 in	2 mm	Solder Retention	UL94 V-0	All	1	Surface Mount	Circular	Solder	Varies by Wire Gauge	Brass	Nylon Polyamide (PA)	Push-Pull	Board to Board Cable	Beige	7.5 mm 7.7 mm 8.4 mm	5.9 mm	0.232 in	250 VAC	4	Shrouded - 4 Wall
Hirose Electric USA, Inc. DF3EA-15P-2H(51)		105 ░C	-55 °C	Header	Male Pin	0.079 in	2 mm	Solder Retention	UL94 V-0	All	1	Surface Mount Right Angle	Circular	Solder	Varies by Wire Gauge	Brass	Nylon Polyamide (PA)	Push-Pull	Board to Board Cable	Beige		5.6 mm	0.22 in	250 VAC	15	Shrouded - 4 Wall	0.203 Ám	8 Áin	Gold
Hirose Electric USA, Inc. DF3EA-11P-2V(21)	Tin	105 ░C	-55 °C	Header	Male Pin	0.079 in	2 mm	Solder Retention	UL94 V-0	All	1	Surface Mount	Circular	Solder	Varies by Wire Gauge	Brass	Nylon Polyamide (PA)	Push-Pull	Board to Board Cable	Beige	7.5 mm 7.7 mm 8.4 mm	5.9 mm	0.232 in	250 VAC	11	Shrouded - 4 Wall
Hirose Electric USA, Inc. DF3EA-13P-2H(21)	Tin	105 ░C	-55 °C	Header	Male Pin	0.079 in	2 mm	Solder Retention	UL94 V-0	All	1	Surface Mount Right Angle	Circular	Solder	Varies by Wire Gauge	Brass	Nylon Polyamide (PA)	Push-Pull	Board to Board Cable	Beige		5.6 mm	0.22 in	250 VAC	13	Shrouded - 4 Wall	1 µm	39.4 µin
Hirose Electric USA, Inc. DF3EA-15P-2H(21)	Tin	105 ░C	-55 °C	Header	Male Pin	0.079 in	2 mm	Solder Retention	UL94 V-0	All	1	Surface Mount Right Angle	Circular	Solder	Varies by Wire Gauge	Brass	Nylon Polyamide (PA)	Push-Pull	Board to Board Cable	Beige		5.6 mm	0.22 in	250 VAC	15	Shrouded - 4 Wall	1 µm	39.4 µin
Hirose Electric USA, Inc. DF3EA-3P-2H(51)		105 ░C	-55 °C	Header	Male Pin	0.079 in	2 mm	Solder Retention	UL94 V-0	All	1	Surface Mount Right Angle	Circular	Solder	Varies by Wire Gauge	Brass	Nylon Polyamide (PA)	Push-Pull	Board to Board Cable	Beige		5.6 mm	0.22 in	250 VAC		Shrouded - 4 Wall	0.203 Ám	8 Áin	Gold
Hirose Electric USA, Inc. DF3EA-10P-2V(51)		105 ░C	-55 °C	Header	Male Pin	0.079 in	2 mm	Solder Retention	UL94 V-0	All	1	Surface Mount	Circular	Solder	Varies by Wire Gauge	Brass	Nylon Polyamide (PA)	Push-Pull	Board to Board Cable	Beige	7.5 mm 7.7 mm 8.4 mm	5.9 mm	0.232 in	250 VAC	10	Shrouded - 4 Wall	0.203 Ám	8 Áin	Gold
Hirose Electric USA, Inc. DF3EA-2P-2H(21)	Tin	105 ░C	-55 °C	Header	Male Pin	0.079 in	2 mm	Solder Retention	UL94 V-0	All	1	Surface Mount Right Angle	Circular	Solder	Varies by Wire Gauge	Brass	Nylon Polyamide (PA)	Push-Pull	Board to Board Cable	Beige		5.6 mm	0.22 in	250 VAC	2	Shrouded - 4 Wall	1 µm	39.4 µin
Hirose Electric USA, Inc. DF3EA-11P-2V(51)		105 ░C	-55 °C	Header	Male Pin	0.079 in	2 mm	Solder Retention	UL94 V-0	All	1	Surface Mount	Circular	Solder	Varies by Wire Gauge	Brass	Nylon Polyamide (PA)	Push-Pull	Board to Board Cable	Beige	7.5 mm 7.7 mm 8.4 mm	5.9 mm	0.232 in	250 VAC	11	Shrouded - 4 Wall	0.203 Ám	8 Áin	Gold
Hirose Electric USA, Inc. DF3EA-3P-2H(24)	Tin	105 ░C	-55 °C	Header	Male Pin	0.079 in	2 mm	Solder Retention	UL94 V-0	All	1	Surface Mount Right Angle	Circular	Solder	Varies by Wire Gauge	Brass	Nylon Polyamide (PA)	Push-Pull	Board to Board Cable	Black		5.6 mm	0.22 in	250 VAC		Shrouded - 4 Wall	1 µm	39.4 µin		1 çm	39.4 çin
