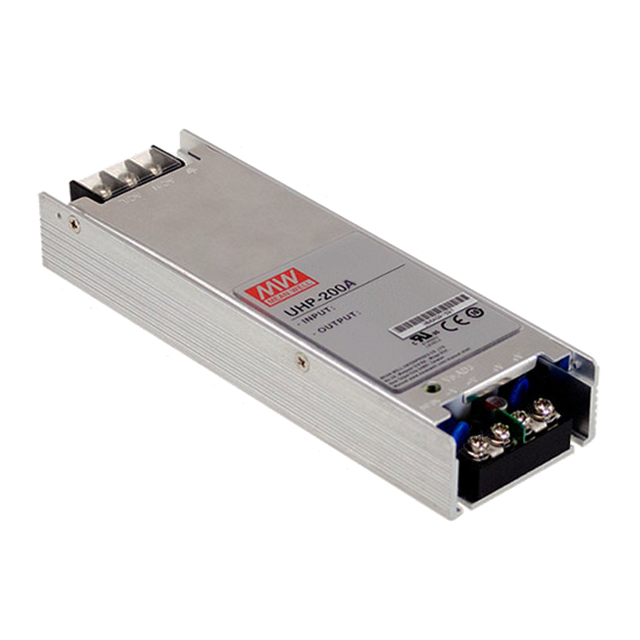

UHP-200A-5

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 200W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UHP-200A-5

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 200W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UHP-200A-5

Applications	ITE (Commercial)
Approval Agency	TUV, cURus, CB, CCC, CE
Current - Output 1	40 A
Efficiency	88.5 %
Features	PFC, Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	200 W
Size / Dimension [x]	167 mm
Size / Dimension [x]	6.57 "
Size / Dimension [y]	55 mm
Size / Dimension [y]	2.17 in
Size / Dimension [z]	1.02 in
Size / Dimension [z]	26 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

UHP-200 Series

Part	Approval Agency	Current - Output 1	Features	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Isolation	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Voltage - Output 1	Power (Watts)
MEAN WELL USA Inc. UHP-200-24	CB CCC CE cURus TUV	8.4 A	Adjustable Output PFC Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	1	94 %	70 °C	-30 °C	Chassis Mount	3750 V	Household Appliances ITE (Commercial)	2.17 in	26 mm	7.64 in	194 mm	55 mm	1.02 in	Enclosed	24 V
MEAN WELL USA Inc. UHP-200A-5	CB CCC CE cURus TUV	40 A	Adjustable Output PFC Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	1	88.5 %	70 °C	-30 °C	Chassis Mount	3000 V	ITE (Commercial)	2.17 in	26 mm	6.57 "	167 mm	55 mm	1.02 in	Enclosed	5 V	200 W
MEAN WELL USA Inc. UHP-200R-48	CB CCC CE cURus TUV	4.2 A	Adjustable Output PFC Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	1	94 %	70 °C	-30 °C	Chassis Mount	3750 V	Household Appliances ITE (Commercial)	2.17 in	26 mm	7.64 in	194 mm	55 mm	1.02 in	Enclosed	48 V
MEAN WELL USA Inc. UHP-200-36	CB CCC CE cURus TUV	5.6 A	Adjustable Output PFC Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	1	94 %	70 °C	-30 °C	Chassis Mount	3750 V	Household Appliances ITE (Commercial)	2.17 in	26 mm	7.64 in	194 mm	55 mm	1.02 in	Enclosed	36 V
MEAN WELL USA Inc. UHP-200A-4.5	CB CCC CE cURus TUV	40 A	Adjustable Output PFC Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	1	88 %	70 °C	-30 °C	Chassis Mount	3000 V	ITE (Commercial)	2.17 in	26 mm	6.57 "	167 mm	55 mm	1.02 in	Enclosed	4.5 V	180 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 56.86
		5	$ 53.57
		10	$ 52.21
		25	$ 50.47

Description

General part information

UHP-200 Series

Enclosed AC DC Converters 1 Output 5V 90 ~ 264 VAC, 127 ~ 370 VDC Input
