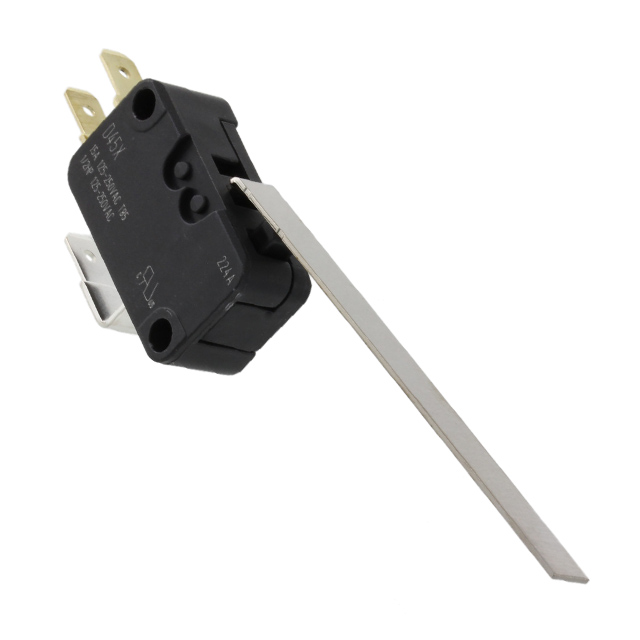

D459-R1ML-G2
ActiveZF Electronics
SWITCH SNAP ACTION SPDT 16A 250V
Deep-Dive with AI
Search across all available documentation for this part.
D459-R1ML-G2
ActiveZF Electronics
SWITCH SNAP ACTION SPDT 16A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D459-R1ML-G2 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 16 A |
| Differential Travel | 0.098 in |
| Differential Travel | 2.5 mm |
| Electrical Life | 50000 Cycles |
| Features | Explosion Proof |
| Mounting Type | Chassis Mount |
| Operating Force | 13 gf |
| Operating Position | 0.6 in |
| Operating Position | 15.2 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 7.9 mm |
| Overtravel | 0.312 in |
| Pretravel | 12.7 mm |
| Pretravel | 0.5 in |
| Release Force | 3.059 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
D459 Series
Switch SPDT Chassis Mount
