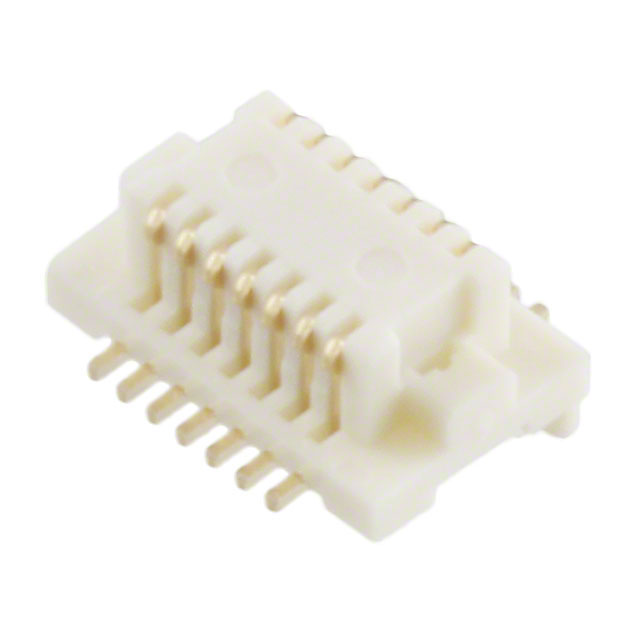

DF12A(3.0)-14DS-0.5V(81)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 14POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 14POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF12A(3.0)-14DS-0.5V(81)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Features	Board Guide
Height Above Board	0.087 in
Height Above Board	2.2 mm
Mated Stacking Heights	3 mm
Mounting Type	Surface Mount
Number of Positions	14
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Height Above Board	Height Above Board	Connector Type	Mated Stacking Heights	Contact Finish	Number of Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Features	Pitch [x]	Pitch [x]
Hirose Electric USA, Inc. DF12A(3.0)-14DS-0.5V(81)	0.087 in	2.2 mm	Center Strip Contacts Receptacle	3 mm	Gold	2	14	8 çin	0.203 çm	Surface Mount	Board Guide	0.5 mm	0.02 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

14 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Technical documentation and resources
