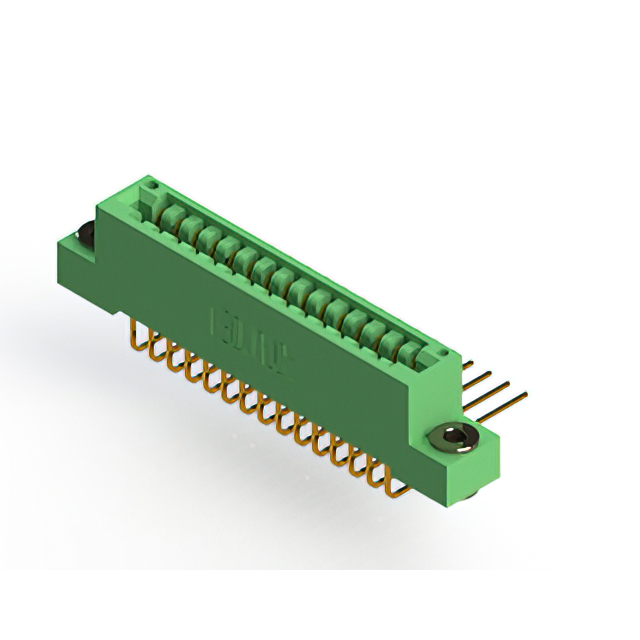

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 30 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Enhanced Product Overview EN +1

346-030-559-203

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 30 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDrawing EN Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-030-559-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	30
Number of Positions/Bay/Row [custom]	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Wire Wrap, Solder
Termination Rows	2

346-030 Series

...

Part	Color	Material - Insulation	Number of Positions/Bay/Row [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Gender	Card Type	Pitch [x]	Pitch [x]	Number of Rows	Read Out	Contact Finish	Contact Material	Flange Feature	Contact Type	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Termination	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 346-030-500-158	Green	Polyester Thermoplastic	30	-40 °C	105 ░C	Card Guides	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Female	Non Specified - Single Edge	0.125 in	3.18 mm	1	Single	Gold	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	1	10 Áin	0.25 Ám	30	Solder Eyelet(s)
EDAC Inc. 346-030-540-101	Green	Polyester Thermoplastic	30	-40 °C	105 ░C		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Female	Non Specified - Single Edge	0.125 in	3.18 mm	1	Single	Gold	Copper Alloy		Cantilever	1	10 Áin	0.25 Ám	30	Wire Wrap
EDAC Inc. 346-030-541-101	Green	Polyester Thermoplastic	30	-40 °C	105 ░C		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Female	Non Specified - Single Edge	0.125 in	3.18 mm	1	Single	Gold	Copper Alloy		Cantilever	1	10 Áin	0.25 Ám	30	Wire Wrap
EDAC Inc. 346-030-541-108	Green	Polyester Thermoplastic	30	-40 °C	105 ░C		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Female	Non Specified - Single Edge	0.125 in	3.18 mm	1	Single	Gold	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	1	10 Áin	0.25 Ám	30	Wire Wrap
EDAC Inc. 346-030-560-204	Green	Polyester Thermoplastic	15	-40 °C	105 ░C	Card Extender	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	Female	Non Specified - Dual Edge	0.125 in	3.18 mm	2	Dual	Gold	Copper Alloy	Flush Mount Top Opening Unthreaded	Cantilever	2	10 Áin	0.25 Ám	30	Solder	3.96 mm	0.156 in
EDAC Inc. 346-030-500-607	Green	Polyester Thermoplastic	30	-40 °C	105 ░C		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Female	Non Specified - Single Edge	0.125 in	3.18 mm	1	Single	Gold	Copper Alloy	M3 Threaded Insert Top Mount Opening	Cantilever	1	10 Áin	0.25 Ám	30	Solder Eyelet(s)
EDAC Inc. 346-030-520-204	Green	Polyester Thermoplastic	15	-40 °C	105 ░C		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Female	Non Specified - Dual Edge	0.125 in	3.18 mm	2	Dual	Gold	Copper Alloy	Flush Mount Top Opening Unthreaded	Cantilever	2	10 Áin	0.25 Ám	30	Solder	3.96 mm	0.156 in
EDAC Inc. 346-030-558-207	Green	Polyester Thermoplastic	15	-40 °C	105 ░C		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	Female	Non Specified - Dual Edge	0.125 in	3.18 mm	2	Dual	Gold	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	Cantilever	2	10 Áin	0.25 Ám	30	Solder Wire Wrap
EDAC Inc. 346-030-540-207	Green	Polyester Thermoplastic	15	-40 °C	105 ░C		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Female	Non Specified - Dual Edge	0.125 in	3.18 mm	2	Dual	Gold	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	Cantilever	2	10 Áin	0.25 Ám	30	Wire Wrap
EDAC Inc. 346-030-559-203	Green	Polyester Thermoplastic	15	-40 °C	105 ░C		1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	Female	Non Specified - Dual Edge	0.125 in	3.18 mm	2	Dual	Gold	Copper Alloy	Floating Bobbin Flush Mount	Cantilever	2	10 Áin	0.25 Ám	30	Solder Wire Wrap	2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 12.67
Newark	Each	1	$ 12.16
		100	$ 8.31
		250	$ 7.09
		500	$ 6.59
		1000	$ 5.57

Description

General part information

346-030 Series

30 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
