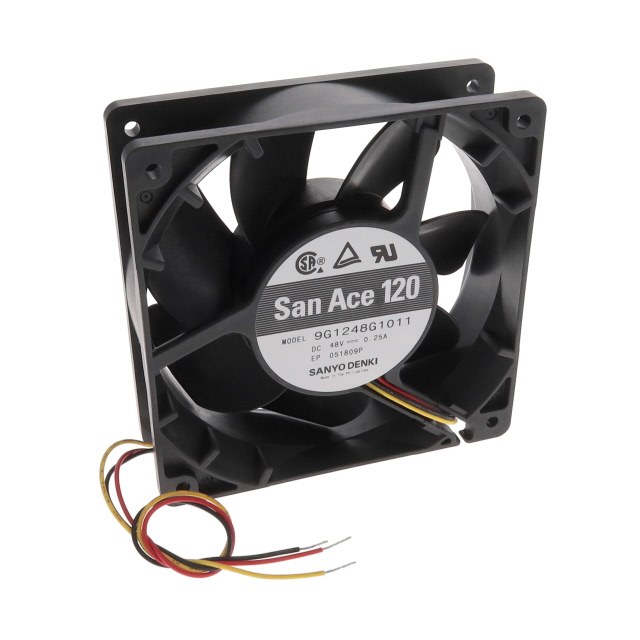

9G1248G1011

Active

Sanyo Denki America Inc.

FAN AXIAL 119X38MM 48VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHandling Instructions for Fan Motors Rotor Balancing

9G1248G1011

Active

Sanyo Denki America Inc.

FAN AXIAL 119X38MM 48VDC WIRE

Deep-Dive with AI

DocumentsHandling Instructions for Fan Motors Rotor Balancing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9G1248G1011

Air Flow	137 CFM
Air Flow	3.84 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.25 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	49 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	12 W
RPM	3600 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	0.542 in H2O
Static Pressure	135 Pa
Termination	3 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	55.2 VDC
Voltage Range [Min]	40.8 VDC
Weight	330.22 g
Weight	0.728 lb
Width [y]	38 mm

9G1248 Series

Part	Voltage - Rated [custom]	RPM	Size / Dimension [y]	Size / Dimension [x]	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Material - Frame	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Fan Type	Noise	Bearing Type	Static Pressure	Static Pressure	Material - Blade	Power (Watts)	Air Flow	Air Flow	Weight	Weight	Lifetime @ Temp.	Approval Agency	Width [y]	Termination	Air Flow	Air Flow
Sanyo Denki America Inc. 9G1248H4D01	48 VDC	2850 RPM	120 mm	120 mm	55.2 VDC	40.8 VDC	100 mA	Plastic	-20 °C	70 °C	-20 C	70 °C	Locked Rotor Sensor	Tubeaxial	40 dB(A)	Ball	64 Pa	0.257 in H2O	Plastic	4.8 W	2.46 m³/min	88 CFM	239.95 g	0.529 lb	40000 Hrs	CSA TUV UL	25 mm	3 Wire Leads
Sanyo Denki America Inc. 9G1248G1011	48 VDC	3600 RPM	119 mm	119 mm	55.2 VDC	40.8 VDC	0.25 A	Plastic	-20 °C	70 °C	-20 C	70 °C	Speed Sensor (Tach)	Tubeaxial	49 dB	Ball	135 Pa	0.542 in H2O	Plastic	12 W	3.84 m³/min	137 CFM	330.22 g	0.728 lb	40000 Hrs	CSA TUV UL	38 mm	3 Wire Leads
Sanyo Denki America Inc. 9G1248M4D011	48 VDC	1950 RPM	120 mm	120 mm	55.2 VDC	40.8 VDC	50 mA	Plastic	-20 °C	70 °C	-20 C	70 °C	Locked Rotor Sensor	Tubeaxial	29 dB(A)	Ball	30.9 Pa	0.124 in H2O	Plastic	2.4 W	59 CFM		239.95 g	0.529 lb	40000 Hrs	CSA TUV UL	25 mm	3 Wire Leads	1.65 m³/min
Sanyo Denki America Inc. 9G1248M402	48 VDC	1950 RPM	119 mm	119 mm	55.2 VDC	40.8 VDC	50 mA	Plastic	-20 °C	70 °C	-20 C	70 °C		Tubeaxial	29 dB(A)	Ball	30.9 Pa	0.124 in H2O	Plastic	2.4 W	59 CFM		239.95 g	0.529 lb	40000 Hrs	CSA TUV UL	25 mm	2 Wire Leads	1.65 m³/min
Sanyo Denki America Inc. 9G1248P1G041	48 VDC	3600 RPM	120 mm	120 mm	55.2 VDC	40.8 VDC	0.25 A	Plastic	-20 °C	70 °C	-20 C	70 °C	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Tubeaxial	49 dB	Ball	135 Pa	0.542 in H2O	Plastic	12 W	3.84 m³/min	137 CFM	330.22 g	0.728 lb	40000 Hrs	CSA TUV UL	38 mm	4 Wire Leads
Sanyo Denki America Inc. 9G1248F1011	48 VDC	2280 RPM	119 mm	119 mm	55.2 VDC	40.8 VDC	0.09 A	Plastic	-20 °C	70 °C	-20 C	70 °C	Speed Sensor (Tach)	Tubeaxial	36 dB	Ball	54.3 Pa	0.218 in H2O	Plastic	4.32 W	2.44 m³/min	87 CFM	330.22 g	0.728 lb	40000 Hrs	CSA TUV UL	38 mm	3 Wire Leads
Sanyo Denki America Inc. 9G1248M4011	48 VDC	1950 RPM	119 mm	119 mm	55.2 VDC	40.8 VDC	50 mA	Plastic	-20 °C	70 °C	-20 C	70 °C	Speed Sensor (Tach)	Tubeaxial	29 dB(A)	Ball	30.9 Pa	0.124 in H2O	Plastic	2.4 W	1.65 mł/min	59 CFM	239.95 g	0.529 lb	40000 Hrs	CSA TUV UL	25 mm	3 Wire Leads
Sanyo Denki America Inc. 9G1248G401	48 VDC	4100 RPM	119 mm	119 mm	55.2 VDC	40.8 VDC	0.23 A	Plastic	-20 °C	70 °C	-20 C	70 °C	Speed Sensor (Tach)	Tubeaxial	51 dB(A)	Ball			Plastic	11.04 W	3.64 m³/min	130 CFM	239.95 g	0.529 lb	40000 Hrs	CSA TUV UL	25 mm	3 Wire Leads
Sanyo Denki America Inc. 9G1248F1D01	48 VDC	2280 RPM	120 mm	120 mm	55.2 VDC	40.8 VDC	0.09 A	Plastic	-20 °C	70 °C	-20 C	70 °C	Locked Rotor Sensor	Tubeaxial	36 dB	Ball	54.3 Pa	0.218 in H2O	Plastic	4.32 W	2.44 m³/min		330.22 g	0.728 lb	40000 Hrs	CSA TUV UL	38 mm	3 Wire Leads		87 CFM
Sanyo Denki America Inc. 9G1248E1D011	48 VDC	3100 RPM	119 mm	119 mm	55.2 VDC	40.8 VDC	0.17 A	Plastic	-20 °C	70 °C	-20 C	70 °C	Locked Rotor Sensor	Tubeaxial	46 dB(A)	Ball	100 Pa	0.401 in H2O	Plastic	8.16 W	3.3 m³/min	118 CFM	330.22 g	0.728 lb	40000 Hrs	CSA TUV UL	38 mm	3 Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	21	$ 31.00
		42	$ 29.82
		63	$ 27.86
		105	$ 25.70

Description

General part information

9G1248 Series

Fan Tubeaxial 48VDC Square - 119mm L x 119mm H Ball 137.0 CFM (3.84m³/min) 3 Wire Leads
