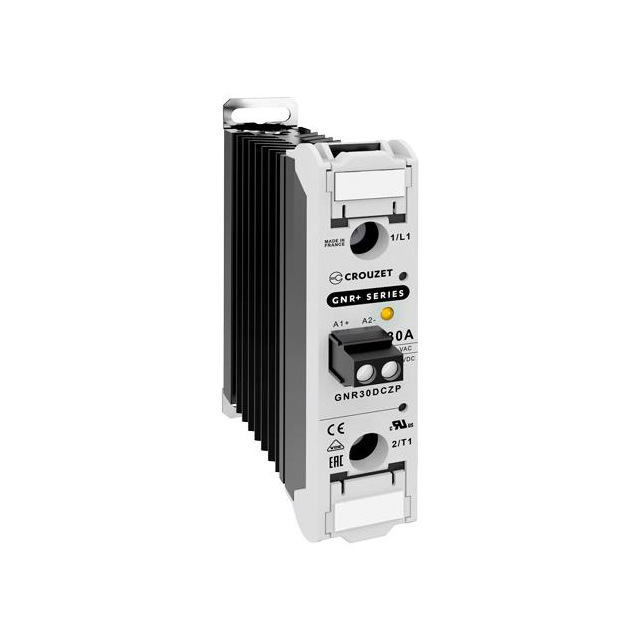

GNR30DCZP

Active

Crouzet

SOLID STATE RELAY, 30 A, 500 VAC, DIN RAIL, SCREW, ZERO CROSSING

Search across all available documentation for this part.

Active

Crouzet

SOLID STATE RELAY, 30 A, 500 VAC, DIN RAIL, SCREW, ZERO CROSSING

Technical Specifications

Parameters and characteristics for this part

Part	Output Type	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]	Supplier Device Package	Load Current	Termination Style	Approval Agency
Crouzet GNR30DCZH	AC Zero Cross	48 V	660 V	-40 °C	80 C	Chassis Mount DIN Rail	Module	32 V	4 V	Module	30 A	Screw Terminal	CE cURus VDE
Crouzet GNR30DCZP	AC Zero Cross	24 V	500 V	-40 °C	80 C	Chassis Mount DIN Rail	Module	32 V	4 V	Module	30 A	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 92.86
Newark	Each	1	$ 97.57

General part information

Solid State SPST-NO (1 Form A) Module
