XM3F-0920-112

Active

Omron Electronics Inc-EMC Div

CONN D-SUB RCPT 9POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes XM2x,XM3x Series Overview +1

XM3F-0920-112

Active

Omron Electronics Inc-EMC Div

CONN D-SUB RCPT 9POS VERT SLDR

Deep-Dive with AI

DocumentsHow to Read Date Codes XM2x,XM3x Series Overview +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XM3F-0920-112

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	16 µin
Contact Finish Thickness	0.41 µm
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded, Board Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	300 VDC

XM3F Series

Part	Dielectric Material	Connector Type	Contact Material	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Material Flammability Rating	Color	Number of Positions	Termination	Connector Style	Features	Voltage Rating	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Shell Material, Finish	Flange Feature	Shell Size, Connector Layout
Omron Electronics Inc-EMC Div XM3F-0920-112	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Female Sockets	Phosphor Bronze	2	105 ░C	-55 °C	Signal	UL94 V-0	Black	9	Solder	D-Sub	Board Lock Shielded	300 VDC	Through Hole	DE E	1	Gold	16 µin	0.41 µm	5 A
Omron Electronics Inc-EMC Div XM3F-0920	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Female Sockets	Phosphor Bronze	2	105 ░C	-55 °C	Signal	UL94 V-0	Black	9	Solder	D-Sub	Shielded	300 VDC	Through Hole	DE E	1	Gold	16 µin	0.41 µm	5 A	Nickel Plated Steel	Housing/Shell (Unthreaded)
Omron Electronics Inc-EMC Div XM3F-2520	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Female Sockets	Phosphor Bronze	2	105 ░C	-55 °C	Signal	UL94 V-0	Black		Solder	D-Sub	Shielded	300 VDC	Through Hole	B DB	3	Gold	16 µin	0.41 µm	5 A	Nickel Plated Steel	Housing/Shell (Unthreaded)
Omron Electronics Inc-EMC Div XM3F-3720-112	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Female Sockets	Phosphor Bronze	2	105 ░C	-55 °C	Signal	UL94 V-0	Black	37	Solder	D-Sub	Board Lock Shielded	300 VDC	Through Hole			Gold	16 µin	0.41 µm	5 A			4 (DC C)
Omron Electronics Inc-EMC Div XM3F-3720	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Female Sockets	Phosphor Bronze	2	105 ░C	-55 °C	Signal	UL94 V-0	Black	37	Solder	D-Sub	Shielded	300 VDC	Through Hole			Gold	16 µin	0.41 µm	5 A	Nickel Plated Steel	Housing/Shell (Unthreaded)	4 (DC C)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.30
		10	$ 7.36
		25	$ 7.08
		40	$ 6.79
		90	$ 6.64

Description

General part information

XM3F Series

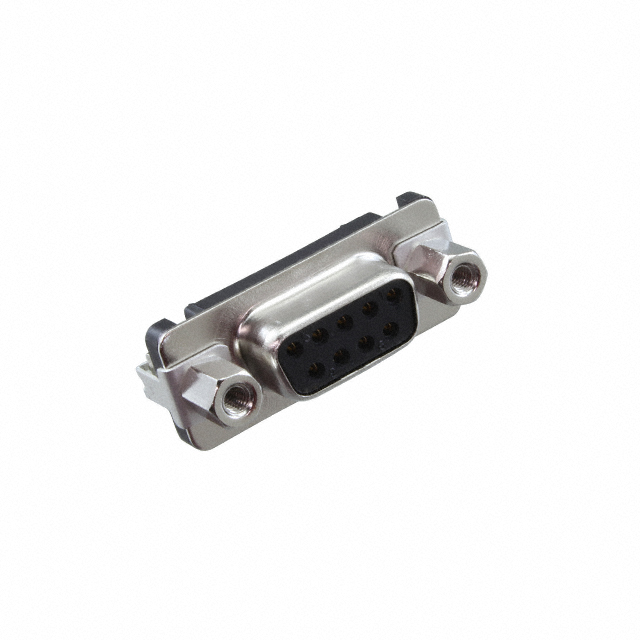

9 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

How to Read Date Codes

XM2x,XM3x Series Overview

Datasheet
