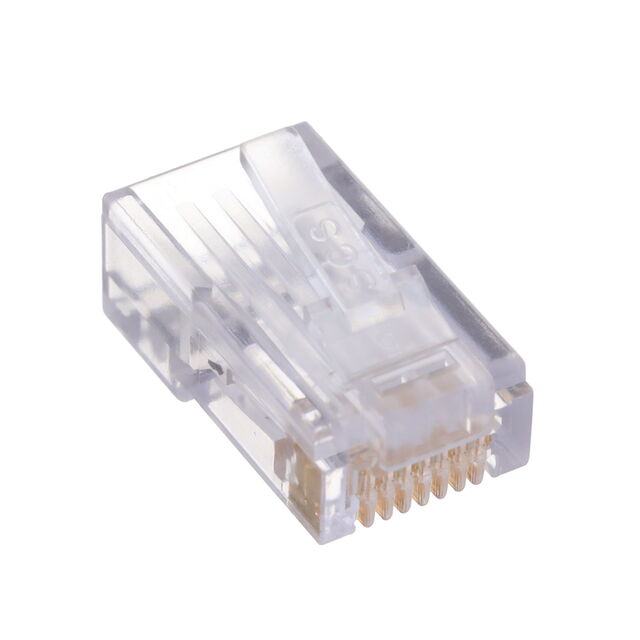

SS-37000-006

Active

BEL MAGNETIC SOLUTIONS

CONN MOD PLUG 8P8C UNSHIELDED

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

CONN MOD PLUG 8P8C UNSHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	SS-37000-006

Cable Type	Flat Oval Cable, Solid or Stranded Wires
Color	Translucent - Clear
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Housing Material	Polycarbonate (PC)
Length	22.48 mm
Length	0.885 in
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat5e
Shielding	Unshielded
Termination	IDC

Part	Connector Type	Number of Positions/Contacts	Ratings	Color	Length	Length	Shielding	Contact Material	Housing Material	Cable Type	Contact Finish	Termination	Contact Finish Thickness	Contact Finish Thickness	Voltage Rating	Current Rating (Amps)	Length
BEL MAGNETIC SOLUTIONS SS-37000-006	Plug	8p8c (RJ45 Ethernet)	Cat5e	Translucent - Clear	22.48 mm	0.885 in	Unshielded	Phosphor Bronze	Polycarbonate (PC)	Flat Oval Cable Solid or Stranded Wires	Gold	IDC	50 µin	1.27 µm
BEL MAGNETIC SOLUTIONS SS-37000-001	Plug	8p8c (RJ45 Ethernet)	Cat5e	Translucent - Clear	22.48 mm	0.885 in	Unshielded	Phosphor Bronze	Polycarbonate (PC)	Round Cable Solid Stranded Wires	Gold	IDC	30 Áin	0.76 Ám	150 VDC	1.5 A
BEL MAGNETIC SOLUTIONS SS-37000-009	Plug	8p8c (RJ45 Ethernet)	Cat5e	Translucent - Clear	22.48 mm	0.885 in	Unshielded	Phosphor Bronze	Polycarbonate (PC)	Round Cable Solid Stranded Wires	Gold	IDC	50 µin	1.27 µm	150 VDC	1.5 A
BEL MAGNETIC SOLUTIONS SS-37000-004	Plug	8p8c (RJ45 Ethernet)	Cat5e	Translucent - Clear		22.45 mm	Unshielded	Phosphor Bronze	Polycarbonate (PC)	Round Cable Solid Stranded Wires	Gold	IDC	50 µin	1.27 µm	150 VDC	1.5 A	0.884 "
BEL MAGNETIC SOLUTIONS SS-37000-003	Plug	8p8c (RJ45 Ethernet)	Cat5e	Translucent - Clear	22.48 mm	0.885 in	Unshielded	Phosphor Bronze	Polycarbonate (PC)	Round Cable Solid Stranded Wires	Gold	IDC	50 µin	1.27 µm	150 VDC	1.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Unshielded Cat5e IDC
