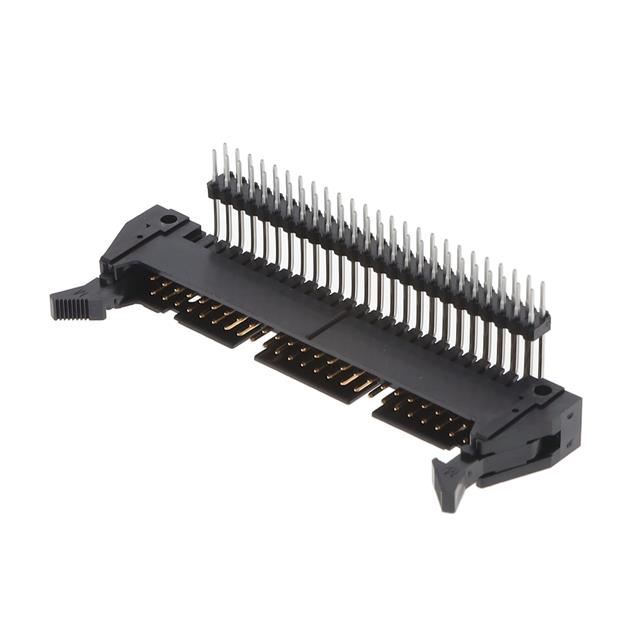

HIF3BA-50PA-2.54WB(63)

Active

Hirose Electric USA, Inc.

CONN HEADER R/A 50POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HIF3BA-50PA-2.54WB(63)

Active

Hirose Electric USA, Inc.

CONN HEADER R/A 50POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF3BA-50PA-2.54WB(63)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Lock/Eject Hooks
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Wire Wrap
Voltage Rating	200 V

HIF3BA Series

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Shrouding	Pitch - Mating	Pitch - Mating	Number of Positions	Insulation Color	Mounting Type	Number of Positions Loaded	Number of Rows	Connector Type	Contact Material	Contact Type	Style	Termination	Insulation Material	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Voltage Rating	Contact Shape	Color	Features	Contact Termination	Note	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Wire Type	Contact Finish	Wire Gauge	Cable Termination	Current Rating (Amps)
Hirose Electric USA, Inc. HIF3BA-34P-2.54W(88)	85 °C	-55 °C	UL94 V-0	Shrouded - 4 Wall	0.1 in	2.54 mm	34	Black	Through Hole	All	2	Header	Brass	Male Pin	Board to Cable/Wire	Wire Wrap	Polybutylene Terephthalate (PBT)	Gold	2.54 mm	0.1 in	Latch Lock/Eject Hooks	200 V	Square
Hirose Electric USA, Inc. HIF3BA-60D-2.54C	85 °C	-55 °C					60		Free Hanging (In-Line)		2	Receptacle		Female Socket			Polybutylene Terephthalate (PBT)							Black	Polarizing Key	Crimp	Contacts Not Included	2.54 mm	0.1 in	0.1 in	2.54 mm
Hirose Electric USA, Inc. HIF3BA-40PA-2.54DS(71)	85 °C	-55 °C	UL94 V-0	Shrouded - 4 Wall	0.1 in	2.54 mm	40	Black	Through Hole Right Angle	All	2	Header	Brass	Male Pin	Board to Cable/Wire	Solder	Polybutylene Terephthalate (PBT)	Gold	2.54 mm	0.1 in	Latch Lock/Eject Hooks	200 V	Square									6 mm	0.236 in	2 çm	78.7 çin	0.118 in	3 mm	0.335 "	8.51 mm	Tin	0.203 Ám	8 Áin
Hirose Electric USA, Inc. HIF3BA-64PD-2.54R-MC							64		Free Hanging (In-Line)		2	Header		Male Pin							Latch Lock/Eject Hooks			Black	Feed Through Polarizing Key Strain Relief			2.54 mm	0.1 in	0.1 in	2.54 mm												Ribbon Cable	Gold	28 AWG	IDC
Hirose Electric USA, Inc. HIF3BA-40D-2.54R-CL(71)							40		Free Hanging (In-Line)		2	Socket		Female Socket							Latch Lock			Black	Feed Through Polarizing Key Strain Relief			2.54 mm	0.1 in	0.1 in	2.54 mm												Ribbon Cable	Gold	28 AWG	IDC
Hirose Electric USA, Inc. HIF3BA-10PA-2.54DS(63)	85 °C	-55 °C	UL94 V-0	Shrouded - 4 Wall	0.1 in	2.54 mm	10	Black	Through Hole Right Angle	All	2	Header	Brass	Male Pin	Board to Cable/Wire	Solder	Polybutylene Terephthalate (PBT)	Gold	2.54 mm	0.1 in	Latch Lock/Eject Hooks	200 V	Square											2 çm	78.7 çin	0.118 in	3 mm	0.335 "	8.51 mm	Tin	0.203 Ám	8 Áin					Varies by Wire Gauge
Hirose Electric USA, Inc. HIF3BA-40PA-2.54DS(82)	85 °C	-55 °C	UL94 V-0	Shrouded - 4 Wall	0.1 in	2.54 mm	40	Black	Through Hole Right Angle	All	2	Header	Brass	Male Pin	Board to Cable/Wire	Solder	Polybutylene Terephthalate (PBT)	Gold	2.54 mm	0.1 in	Latch Lock/Eject Hooks	200 V	Square									6 mm	0.236 in			0.118 in	3 mm	0.335 "	8.51 mm		0.203 Ám	8 Áin
Hirose Electric USA, Inc. HIF3BA-50PA-2.54DS(63)	85 °C	-55 °C	UL94 V-0	Shrouded - 4 Wall	0.1 in	2.54 mm	50	Black	Through Hole Right Angle	All	2	Header	Brass	Male Pin	Board to Cable/Wire	Solder	Polybutylene Terephthalate (PBT)	Gold	2.54 mm	0.1 in	Latch Lock/Eject Hooks	200 V	Square											2 çm	78.7 çin	0.118 in	3 mm	0.335 "	8.51 mm	Tin	0.203 Ám	8 Áin					Varies by Wire Gauge
Hirose Electric USA, Inc. HIF3BA-40PA-2.54DS(75)	85 °C	-55 °C	UL94 V-0	Shrouded - 4 Wall	0.1 in	2.54 mm	40	Black	Through Hole Right Angle	All	2	Header	Brass	Male Pin	Board to Cable/Wire	Solder	Polybutylene Terephthalate (PBT)	Gold	2.54 mm	0.1 in	Latch Lock/Eject Hooks	200 V	Square									6 mm	0.236 in			0.118 in	3 mm	0.335 "	8.51 mm		0.3 µm	12 µin
Hirose Electric USA, Inc. HIF3BA-50PA-2.54WB(63)	85 °C	-55 °C	UL94 V-0	Shrouded - 4 Wall	0.1 in	2.54 mm	50	Black	Through Hole Right Angle	All	2	Header	Brass	Male Pin	Board to Cable/Wire	Wire Wrap	Polybutylene Terephthalate (PBT)	Gold	2.54 mm	0.1 in	Latch Lock/Eject Hooks	200 V	Square											2 çm	78.7 çin			0.335 "	8.51 mm	Tin	0.203 Ám	8 Áin					Varies by Wire Gauge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 12.92
		20	$ 9.19
		80	$ 7.92
		440	$ 6.66
		960	$ 6.18

Description

General part information

HIF3BA Series

Connector Header Through Hole, Right Angle 50 position 0.100" (2.54mm)
