C0765A.18.10
ActivePrysmian Group

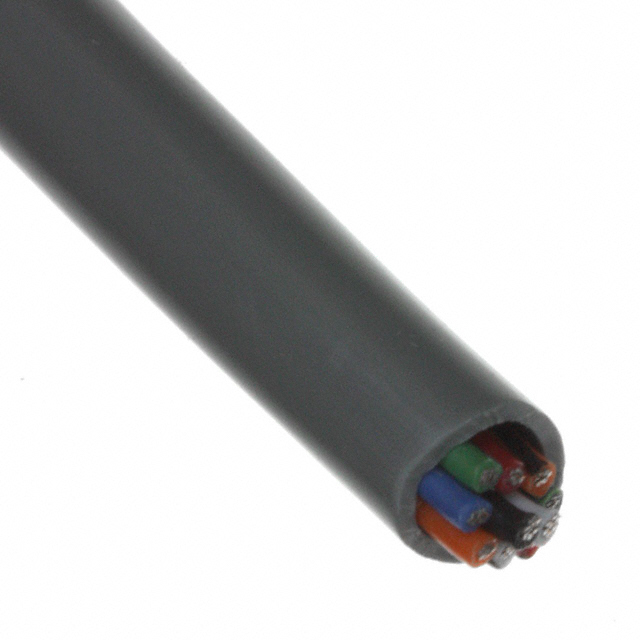

CABLE 10CON 22AWG GRAY SHLD
Deep-Dive with AI
Search across all available documentation for this part.
C0765A.18.10
ActivePrysmian Group
CABLE 10CON 22AWG GRAY SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C0765A.18.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 6.83 mm |
| Jacket (Insulation) Diameter [diameter] | 0.269 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 10 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Ratings | ASTM B-33 |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Computer |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 500 | $ 1.17 | |
| 1000 | $ 1.11 | |||
| 2500 | $ 1.05 | |||
| 5000 | $ 0.99 | |||
Description
General part information
C0765 Series
10 Conductor Multi-Conductor Cable Gray 22 AWG Foil 500.0' (152.4m)
