0348240125

Active

Molex

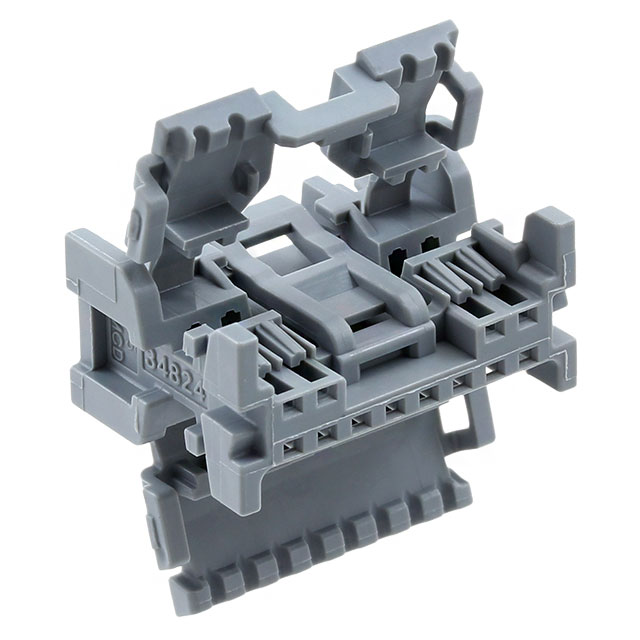

CONN RCPT HSG 12POS 2.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0348240125

Active

Molex

CONN RCPT HSG 12POS 2.00MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0348240125

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm

034824 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Pitch [x]	Pitch [x]	Contact Termination	Color	Number of Positions	Insulation Material	Contact Type	Mounting Type	Connector Type	Number of Rows	Number of Positions	Note	Features
Molex 0348240166	-40 °C	105 ░C	Latch Lock	0.079 in	2 mm	Crimp	Gray	16	Nylon Polyamide (PA)	Female Socket	Free Hanging (In-Line)	Receptacle	2
Molex 0348240202			Latch Lock	0.079 in	2 mm	Crimp	Gray			Female Socket	Free Hanging (In-Line)	Receptacle	2	20	Contacts Not Included
Molex 0348240125	-40 °C	105 ░C	Latch Lock	0.079 in	2 mm	Crimp	Gray		Nylon Polyamide (PA)	Female Socket	Free Hanging (In-Line)	Receptacle	2	12	Contacts Not Included
Molex 0348240240			Latch Lock	0.079 in	2 mm	Crimp	Black			Female Socket	Free Hanging (In-Line)	Receptacle	2	24	Contacts Not Included
Molex 0348242162	-40 °C	105 ░C	Latch Lock	0.079 in	2 mm	Crimp	Gray	16	Polybutylene Terephthalate (PBT)	Female Socket	Free Hanging (In-Line)	Receptacle	2		Contacts Not Included	Connector Position Assurance (CPA)
Molex 0348241160
Molex 0348242161			Latch Lock	0.079 in	2 mm	Crimp	Gray	16		Female Socket	Free Hanging (In-Line)	Receptacle	2		Contacts Not Included	Connector Position Assurance (CPA)
Molex 0348242205	-40 °C	105 ░C	Latch Lock	0.079 in	2 mm	Crimp	Gray		Nylon Polyamide (PA)	Female Socket	Free Hanging (In-Line)	Receptacle	2	20		Polarized
Molex 0348241205	-40 °C	105 ░C	Latch Lock	0.079 in	2 mm	Crimp	Gray		Nylon Polyamide (PA)	Female Socket	Free Hanging (In-Line)	Receptacle	2	20		Polarized
Molex 0348240161			Latch Lock	0.079 in	2 mm	Crimp	Gray	16		Female Socket	Free Hanging (In-Line)	Receptacle	2		Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.09
		10	$ 0.90
		100	$ 0.75
		1040	$ 0.60
		2600	$ 0.54

Description

General part information

034824 Series

12 Rectangular Connectors - Housings Receptacle Gray 0.079" (2.00mm)
