0395078018

Active

Molex

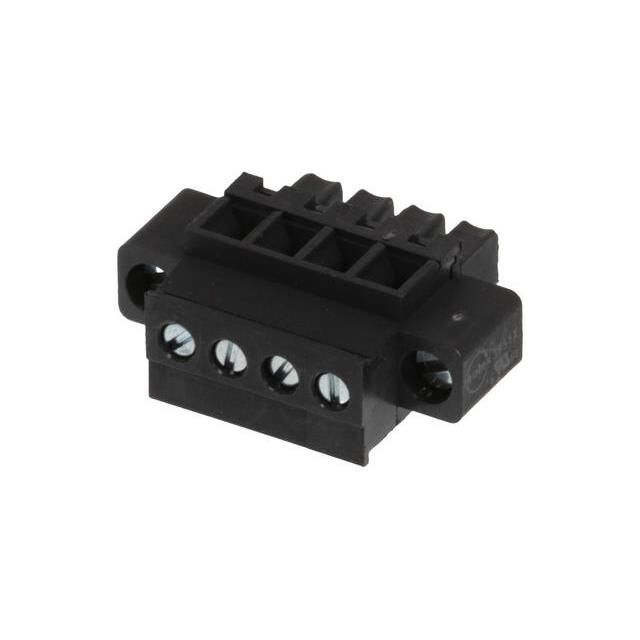

TERM BLOCK PLUG 18POS 3.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0395078018

Active

Molex

TERM BLOCK PLUG 18POS 3.50MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395078018

Color	Green
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Current - UL	8 A
Features	Mating Flange
Insulation Height	18.8 mm
Insulation Height	0.74 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	18
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Plug Wire Entry	90 °
Positions Per Level	18
Screw Size	M2
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.23 Nm
Torque - Screw	2 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	16 AWG
Wire Strip Length	6.5 mm

039507 Series

Part	Number of Positions	Contact Material	Contact Mating Finish	Current - UL	Screw Size	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Wire Strip Length	Voltage - UL	Positions Per Level	Plug Wire Entry	Torque - Screw	Torque - Screw	Termination Style	Material Flammability Rating	Pitch [x]	Pitch [x]	Number of Levels	Type	Insulation Height	Insulation Height	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Color	Features
Molex 0395072520	20	Phosphor Bronze	Gold	8 A	M2	-40 °C	115 °C	Free Hanging (In-Line)	6.5 mm	300 V	20	270 °	0.23 Nm	2 Lb-In	Screw - Rising Cage Clamp	UL94 V-0	3.5 mm	0.138 in	1	Plug Female Sockets	18.8 mm	0.74 in	30 AWG	16 AWG	Black	Mating Flange
Molex 0395077007	7	Phosphor Bronze	Tin	8 A	M2	-40 °C	115 °C	Free Hanging (In-Line)	6.5 mm	300 V	7	270 °	0.23 Nm	2 Lb-In	Screw - Rising Cage Clamp	UL94 V-0	3.5 mm	0.138 in	1	Plug Female Sockets	18.8 mm	0.74 in	30 AWG	16 AWG	Green	Mating Flange
Molex 0395072904	4	Phosphor Bronze	Gold	8 A	M2	-40 °C	115 °C	Free Hanging (In-Line)	6.5 mm	300 V	4	270 °	0.23 Nm	2 Lb-In	Screw - Rising Cage Clamp	UL94 V-0	3.5 mm	0.138 in	1	Plug Female Sockets	18.8 mm	0.74 in	30 AWG	16 AWG	Black	Mating Flange Positions Stamped
Molex 0395072517		Phosphor Bronze	Gold	8 A	M2	-40 °C	115 °C	Free Hanging (In-Line)	6.5 mm	300 V	17	270 °	0.23 Nm	2 Lb-In	Screw - Rising Cage Clamp	UL94 V-0	3.5 mm	0.138 in	1	Plug Female Sockets	18.8 mm	0.74 in	30 AWG	16 AWG	Black	Mating Flange
Molex 0395077509	9	Phosphor Bronze	Gold	8 A	M2	-40 °C	115 °C	Free Hanging (In-Line)	6.5 mm	300 V	9	270 °	0.23 Nm	2 Lb-In	Screw - Rising Cage Clamp	UL94 V-0	3.5 mm	0.138 in	1	Plug Female Sockets	18.8 mm	0.74 in	30 AWG	16 AWG	Green	Mating Flange
Molex 0395073014	14	Phosphor Bronze	Tin	8 A	M2	-40 °C	115 °C	Free Hanging (In-Line)	6.5 mm	300 V	14	90 °	0.23 Nm	2 Lb-In	Screw - Rising Cage Clamp	UL94 V-0	3.5 mm	0.138 in	1	Plug Female Sockets	18.8 mm	0.74 in	30 AWG	16 AWG	Black	Mating Flange
Molex 0395078018	18	Phosphor Bronze	Tin	8 A	M2	-40 °C	115 °C	Free Hanging (In-Line)	6.5 mm	300 V	18	90 °	0.23 Nm	2 Lb-In	Screw - Rising Cage Clamp	UL94 V-0	3.5 mm	0.138 in	1	Plug Female Sockets	18.8 mm	0.74 in	30 AWG	16 AWG	Green	Mating Flange
Molex 0395072014	14	Phosphor Bronze	Tin	8 A	M2	-40 °C	115 °C	Free Hanging (In-Line)	6.5 mm	300 V	14	270 °	0.23 Nm	2 Lb-In	Screw - Rising Cage Clamp	UL94 V-0	3.5 mm	0.138 in	1	Plug Female Sockets	18.8 mm	0.74 in	30 AWG	16 AWG	Black	Mating Flange
Molex 0395072514	14	Phosphor Bronze	Gold	8 A	M2	-40 °C	115 °C	Free Hanging (In-Line)	6.5 mm	300 V	14	270 °	0.23 Nm	2 Lb-In	Screw - Rising Cage Clamp	UL94 V-0	3.5 mm	0.138 in	1	Plug Female Sockets	18.8 mm	0.74 in	30 AWG	16 AWG	Black	Mating Flange
Molex 0395072004	4	Phosphor Bronze	Tin	8 A	M2	-40 °C	115 °C	Free Hanging (In-Line)	6.5 mm	300 V	4	270 °	0.23 Nm	2 Lb-In	Screw - Rising Cage Clamp	UL94 V-0	3.5 mm	0.138 in	1	Plug Female Sockets	18.8 mm	0.74 in	30 AWG	16 AWG	Black	Mating Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	648	$ 3.96

Description

General part information

039507 Series

18 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 90° Free Hanging (In-Line)
