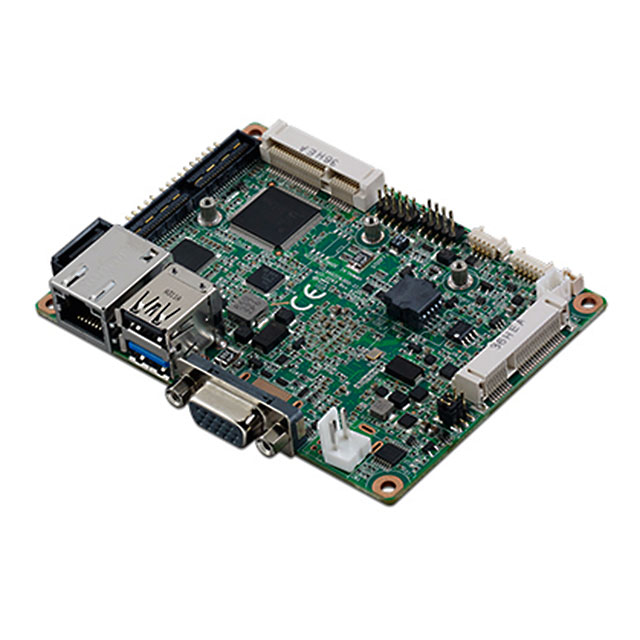

MIO-2263E-S3A1E
ObsoleteAdvantech Corp
SBC 1.33GHZ 2 CORE 8GB/0GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MIO-2263E-S3A1E
ObsoleteAdvantech Corp
SBC 1.33GHZ 2 CORE 8GB/0GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MIO-2263E-S3A1E |
|---|---|
| Cooling Type | Heat Sink |
| Core Processor | Intel Atom E3825 |
| Digital I/O Lines | 8 |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Expansion Site/Bus | MIOe, mPCIe |
| Form Factor | MIO-Ultra Pico-ITX |
| Number of Cores | 2 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 7.08 W |
| RAM Capacity/Installed [custom] | 8 GB |
| RAM Capacity/Installed [custom] | 0 GB |
| RS-232 (422, 485) | 2 |
| Size / Dimension [x] | 3.9 " |
| Size / Dimension [x] | 99.6 mm |
| Size / Dimension [y] | 71.12 mm |
| Size / Dimension [y] | 2.8 in |
| Storage Interface | mSATA, SATA |
| USB | USB 2.0 (3), USB 3.0 (1) |
| Video Outputs | HDMI, VGA, LVDS |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MIO-2263 Series
Single Board Computer 1.33GHz 2 Core 8GB/0GB RAM Intel Atom E3825
