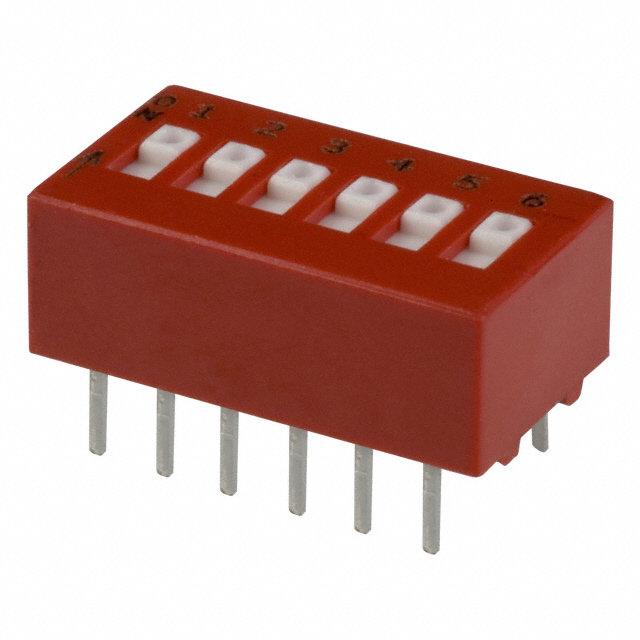

78RB06T
ActiveGrayhill Inc.
SWITCH SLIDE DIP SPST 0.15A 30V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
78RB06T
ActiveGrayhill Inc.
SWITCH SLIDE DIP SPST 0.15A 30V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 78RB06T |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Slide (Standard) |
| Body Material | Thermoplastic |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Electrical Life | 2000 Steps |
| Height Above Board | 0.265 in |
| Height Above Board | 6.73 mm |
| Length [x] | 17.27 mm |
| Length [x] | 0.68 " |
| Mechanical Life | 2000 Cycles |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | PC Pin |
| Voltage Rating | 30 VDC |
| Washable | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.10 | |
| 15 | $ 3.93 | |||
| 30 | $ 3.58 | |||
| 105 | $ 3.11 | |||
| 255 | $ 2.82 | |||
| 510 | $ 2.61 | |||
| 1005 | $ 2.42 | |||
| 2505 | $ 2.20 | |||
Description
General part information
78RB06 Series
Dip Switch SPST 6 Position Through Hole Slide (Standard) Actuator 150mA 30VDC
