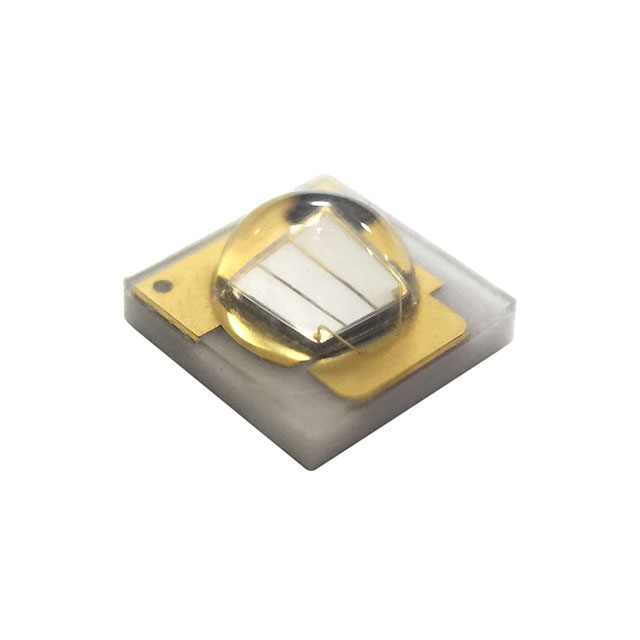

IN-C33CTOIR

Active

Inolux

TOP VIEW 3535 3.5X3.5X2.0

Search across all available documentation for this part.

Active

Inolux

TOP VIEW 3535 3.5X3.5X2.0

Technical Specifications

Parameters and characteristics for this part

Part	Viewing Angle	Type	Mounting Type	Orientation	Current - DC Forward (If) (Max)	Wavelength [Max]	Wavelength [Min]	Operating Temperature	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Current - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Current - Max [Max]	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Wavelength	Viewing Angle [custom]	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]
Inolux IN-C33CTOIR	120 °	Infrared (IR)	Surface Mount	Top View	1 A	860 nm	850 nm	125 ¯C	2.4 V	3535 Metric	1414
Inolux IN-C33BTLY	60 °		Surface Mount						2.2 V	3535 Metric	1414	350 mA	2.93 mm	0.115 "	3535	700 mA	Yellow	3.5 mm	3.5 mm	0.138 in	0.138 in	60 lm	78 lm/W	590 nm
Inolux IN-C33ETLR			Surface Mount						2.2 V	3535 Metric	1414	350 mA	2.46 mm	0.097 "	3535	700 mA	Red	3.5 mm	3.5 mm	0.138 in	0.138 in	50 lm	65 lm/W	625 nm	90 °
Inolux IN-C33BTLRB	60 °		Surface Mount						3.2 V	3535 Metric	1414	350 mA	2.93 mm	0.115 "	3535	700 mA	Blue	3.5 mm	3.5 mm	0.138 in	0.138 in		21 lm/W	455 nm		30 lm	15 lm
Inolux IN-C33BTLB	60 °		Surface Mount						3.2 V	3535 Metric	1414	350 mA	2.93 mm	0.115 "	3535	700 mA	Blue	3.5 mm	3.5 mm	0.138 in	0.138 in	30 lm	27 lm/W	465 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 850nm ~ 860nm 2.4V 1A 120° 1414 (3535 Metric)
