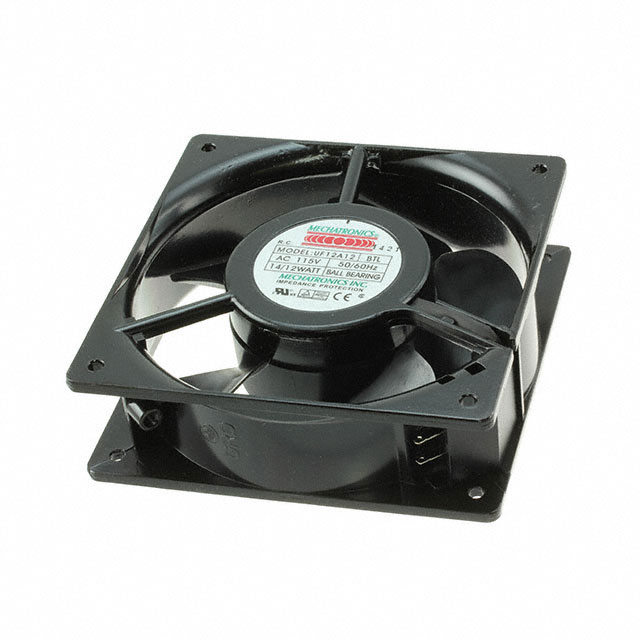

UF12A12-BTMR

Active

Mechatronics Bearing Group

FAN AXIAL 120X38MM 115VAC TERM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC Axial Part Numbering Guide Installation Instructions +1

UF12A12-BTMR

Active

Mechatronics Bearing Group

FAN AXIAL 120X38MM 115VAC TERM

Deep-Dive with AI

DocumentsAC Axial Part Numbering Guide Installation Instructions +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UF12A12-BTMR

Air Flow	92 CFM
Air Flow	2.58 m³/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.17 A
Fan Type	Tubeaxial
Lifetime @ Temp.	50000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	42 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	12 W
RPM	2750 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	69.7 Pa
Static Pressure	0.28 in H2O
Termination	2 Terminals
Voltage - Rated	115 VAC
Width [y]	38 mm

UF12A Series

Part	Power (Watts)	Noise	RPM	Width [y]	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Static Pressure	Static Pressure	Fan Type	Termination	Weight	Weight	Approval Agency	Current Rating (Amps)	Ingress Protection	Features	Material - Frame	Lifetime @ Temp.
Mechatronics Bearing Group UF12A23-STMR	15 W	42 dB	2750 RPM	38 mm	92 CFM	2.58 m³/min	120 mm	120 mm	230 VAC	Sleeve	70 °C	70 °C	-40 °C	-40 °C	Polybutylene Terephthalate (PBT)	69.7 Pa	0.28 in H2O	Tubeaxial	2 Terminals	0.53 kg	1.168 lbs	CE cUL TUV UL
Mechatronics Bearing Group UF12AE23-BWHR	15 W	46 dB(A)	3100 RPM	38 mm	106 CFM	2.97 mł/min	120 mm	120 mm	230 VAC	Ball	70 °C	70 °C	-40 °C	-40 °C	Polybutylene Terephthalate (PBT)	87.2 Pa	0.35 in H2O	Tubeaxial	2 Wire Leads	0.53 kg	1.168 lbs	CE cUL TUV UL	120 mA
Mechatronics Bearing Group UF12AE23-BWHNR	15 W	46 dB(A)	3100 RPM	38 mm	106 CFM	2.97 mł/min	120 mm	120 mm	230 VAC	Ball	70 °C	70 °C	-40 °C	-40 °C	Polybutylene Terephthalate (PBT)	87.2 Pa	0.35 in H2O	Tubeaxial	2 Wire Leads	0.53 kg	1.168 lbs	CE cUL TUV UL	120 mA	IP55 - Dust Protected Water Resistant
Mechatronics Bearing Group UF12A12-BWSLR-CC-M5	8 W	37 dB	2100 RPM	38 mm	64 CFM	1.79 m³/min	120 mm	120 mm	115 VAC	Ball	70 °C	70 °C	-40 °C	-40 °C	Polybutylene Terephthalate (PBT)	27.4 Pa	0.11 in H2O	Tubeaxial	2 Wire Leads	0.53 kg	1.168 lbs	CE cUL TUV UL			Conformal Coating
Mechatronics Bearing Group UF12AR12-BTHR	11 W	47 dB	3100 RPM	38 mm			120 mm	120 mm	115 VAC	Ball	70 °C	70 °C	-40 °C	-40 °C	Polybutylene Terephthalate (PBT)	82.2 Pa	0.33 in H2O	Tubeaxial	2 Terminals			CE cUL UL	0.19 A		Reverse Air Flow	Aluminum
Mechatronics Bearing Group UF12A12-BTMR	12 W	42 dB	2750 RPM	38 mm	92 CFM	2.58 m³/min	120 mm	120 mm	115 VAC	Ball	70 °C	70 °C	-40 °C	-40 °C	Polybutylene Terephthalate (PBT)	69.7 Pa	0.28 in H2O	Tubeaxial	2 Terminals			CE cUL TUV UL	0.17 A			Aluminum	50000 Hrs
Mechatronics Bearing Group UF12A23-SWSR	8 W	37 dB	2100 RPM	38 mm	64 CFM	1.79 m³/min	120 mm	120 mm	230 VAC	Sleeve	70 °C	70 °C	-40 °C	-40 °C	Polybutylene Terephthalate (PBT)	27.4 Pa	0.11 in H2O	Tubeaxial	2 Wire Leads	0.53 kg	1.168 lbs	CE cUL TUV UL	40 mA
Mechatronics Bearing Group UF12A12-BWLR	12 W	38 dB(A)	2300 RPM	38 mm	81 CFM	2.27 m³/min	120 mm	120 mm	115 VAC	Ball	70 °C	70 °C	-40 °C	-40 °C	Polybutylene Terephthalate (PBT)			Tubeaxial	2 Wire Leads			CE cUL TUV UL	150 mA			Aluminum	50000 Hrs
Mechatronics Bearing Group UF12A23-BTLR	15 W	38 dB(A)	2300 RPM	38 mm	81 CFM	2.27 m³/min	120 mm	120 mm	230 VAC	Ball	70 °C	70 °C	-40 °C	-40 °C	Polybutylene Terephthalate (PBT)			Tubeaxial	2 Terminals			CE cUL TUV UL	70 mA			Aluminum	50000 Hrs
Mechatronics Bearing Group UF12AE12-BWHR	12 W	46 dB(A)	3100 RPM	38 mm	106 CFM	2.97 mł/min	120 mm	120 mm	115 VAC	Ball					Polybutylene Terephthalate (PBT)	87.2 Pa	0.35 in H2O	Frameless Tubeaxial	2 Wire Leads							Aluminum

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 17.07

Description

General part information

UF12A Series

Fan Tubeaxial 115VAC Square - 120mm L x 120mm H Ball 92.0 CFM (2.58m³/min) 2 Terminals

Documents

Technical documentation and resources

AC Axial Part Numbering Guide

Datasheet

Installation Instructions

Datasheet
