AMEL20-24SMAZ

Active

aimtec

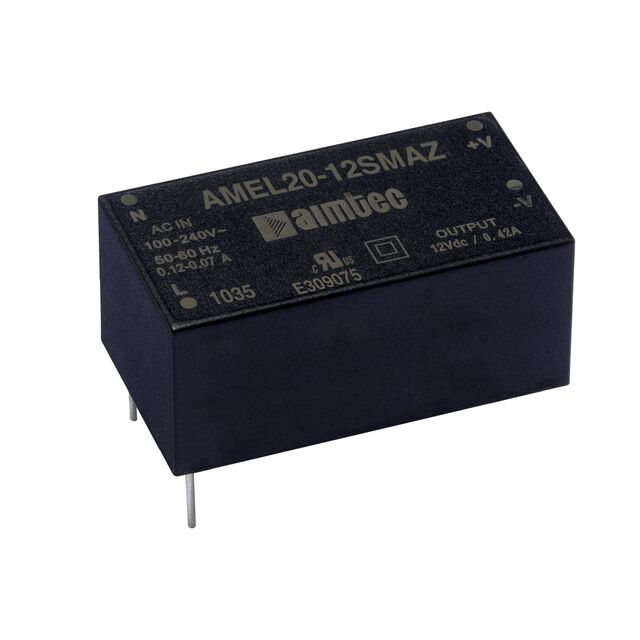

AC/DC CONVERTER 24V 20W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMEL20-24SMAZ

Active

aimtec

AC/DC CONVERTER 24V 20W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AMEL20-24SMAZ

Applications	ITE (Commercial), Medical
Approval Agency	CB, cURus, CE
Current - Output (Max) [Max]	840 mA
Efficiency	79 %
Features	Universal Input
Line Regulation	1 %
Load Regulation	2 %
Mounting Type	Through Hole
Number of Outputs	1
Package / Case	4 Lead
Package / Case	5-DIP Module
Power (Watts)	20 W
Size / Dimension [x]	56.5 mm
Size / Dimension [x]	2.22 in
Size / Dimension [y]	30.9 mm
Size / Dimension [y]	1.21 in
Size / Dimension [z]	25.1 mm
Size / Dimension [z]	0.99 "
Type	Enclosed
Voltage - Input [Max]	264 VAC, 370 VDC
Voltage - Input [Min]	90 VAC, 130 VDC
Voltage - Output 1	24 V
Weight	0.154 lb
Weight	70 g

AMEL20 Series

Part	Efficiency	Type	Mounting Type	Voltage - Output 1	Current - Output (Max) [Max]	Approval Agency	Load Regulation	Line Regulation	Package / Case	Power (Watts)	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Standard Number	Number of Outputs	Weight	Weight	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Features
aimtec AMEL20-9S277HAVZ	85 %	Enclosed	Through Hole	9 V	2.2 A	CE UL	1 %	0.5 %	6-DIP Module 4 Leads	20 W	Household Appliances ITE (Commercial) Medical	27.2 mm	1.07 in	52.4 mm	24 mm	2.06 in	0.94 in	60335-1 60601-1 62368-1	1	55 g	0.121 lb	85 VAC 100 V	305 VAC 430 VDC	85 °C	-40 °C
aimtec AMEL20-5SMAZ	77 %	Enclosed	Through Hole	5 V	4 A	CB CE cURus	2 %	1 %	5-DIP Module	20 W	ITE (Commercial) Medical		30.9 mm			56.5 mm	25.1 mm		1	70 g	0.154 lb	90 VAC 130 VDC	264 VAC 370 VDC			2.22 in	0.99 "	1.21 in	4 Lead	Universal Input
aimtec AMEL20-24SMAZ	79 %	Enclosed	Through Hole	24 V	840 mA	CB CE cURus	2 %	1 %	5-DIP Module	20 W	ITE (Commercial) Medical		30.9 mm			56.5 mm	25.1 mm		1	70 g	0.154 lb	90 VAC 130 VDC	264 VAC 370 VDC			2.22 in	0.99 "	1.21 in	4 Lead	Universal Input
aimtec AMEL20-5SAZ	74 %	Enclosed	Through Hole	5 V	4 A		2 %	1 %	5-DIP Module	20 W	ITE (Commercial)		30.9 mm			56.5 mm	25.1 mm		1	70 g	0.154 lb	90 VAC 130 VDC	305 VAC 430 VDC	80 ¯C	-40 °C	2.22 in	0.99 "	1.21 in	4 Lead
aimtec AMEL20-12S277HAVZ	86 %	Enclosed	Through Hole	12 V	1.67 A	CE UL	1 %	0.5 %	6-DIP Module 4 Leads	20 W	Household Appliances ITE (Commercial) Medical	27.2 mm	1.07 in	52.4 mm	24 mm	2.06 in	0.94 in	60335-1 60601-1 62368-1	1	55 g	0.121 lb	85 VAC 100 V	305 VAC 430 VDC	85 °C	-40 °C
aimtec AMEL20-12S277HAVZ-B	86 %	Enclosed	Through Hole	12 V	1.67 A	CE UL	1 %	0.5 %	6-DIP Module 4 Leads	20 W	Household Appliances ITE (Commercial) Medical	27.2 mm	1.07 in	52.4 mm	24 mm	2.06 in	0.94 in	60335-1 60601-1 62368-1	1	55 g	0.121 lb	85 VAC 100 V	305 VAC 430 VDC	85 °C	-40 °C
aimtec AMEL20-9SCJZ		Enclosed	Through Hole	9 V			1 %	0.5 %	4-DIP Module		ITE (Commercial)		28.8 mm			53.8 mm	23.5 mm		1	60 g	0.132 lb	85 VAC 100 V	264 VAC 370 VDC	70 °C	-25 °C	2.12 "	0.93 in	1.13 in		Universal Input
aimtec AMEL20-12SAZ	80 %	Enclosed	Through Hole	12 V	1.66 A	CB CE cURus FCC	1 %	1 %	5-DIP Module	20 W	ITE (Commercial)		30.9 mm			56.5 mm	25.1 mm		1	70 g	0.154 lb	90 VAC	305 VAC	80 ¯C	-40 °C	2.22 in	0.99 "	1.21 in	4 Lead
aimtec AMEL20-12SMAZ	80 %	Enclosed	Through Hole	12 V	1.66 A	CB CE cURus	1 %	1 %	5-DIP Module	20 W	ITE (Commercial) Medical		30.5 mm			56.5 mm	25.1 mm		1	70 g	0.154 lb	90 VAC	264 VAC			2.22 in	0.99 "	1.21 in	4 Lead	Universal Input
aimtec AMEL20-24SAZ	79 %	Enclosed	Through Hole	24 V	840 mA	CB CE cURus FCC	1 %	1 %	5-DIP Module	20 W	ITE (Commercial)		30.9 mm			56.5 mm	25.1 mm		1	70 g	0.154 lb	90 VAC	305 VAC	80 ¯C	-40 °C	2.22 in	0.99 "	1.21 in	4 Lead

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AMEL20 Series

Enclosed AC DC Converters 1 Output 24V 840mA 90 ~ 264 VAC, 130 ~ 370 VDC Input

Documents

Technical documentation and resources
