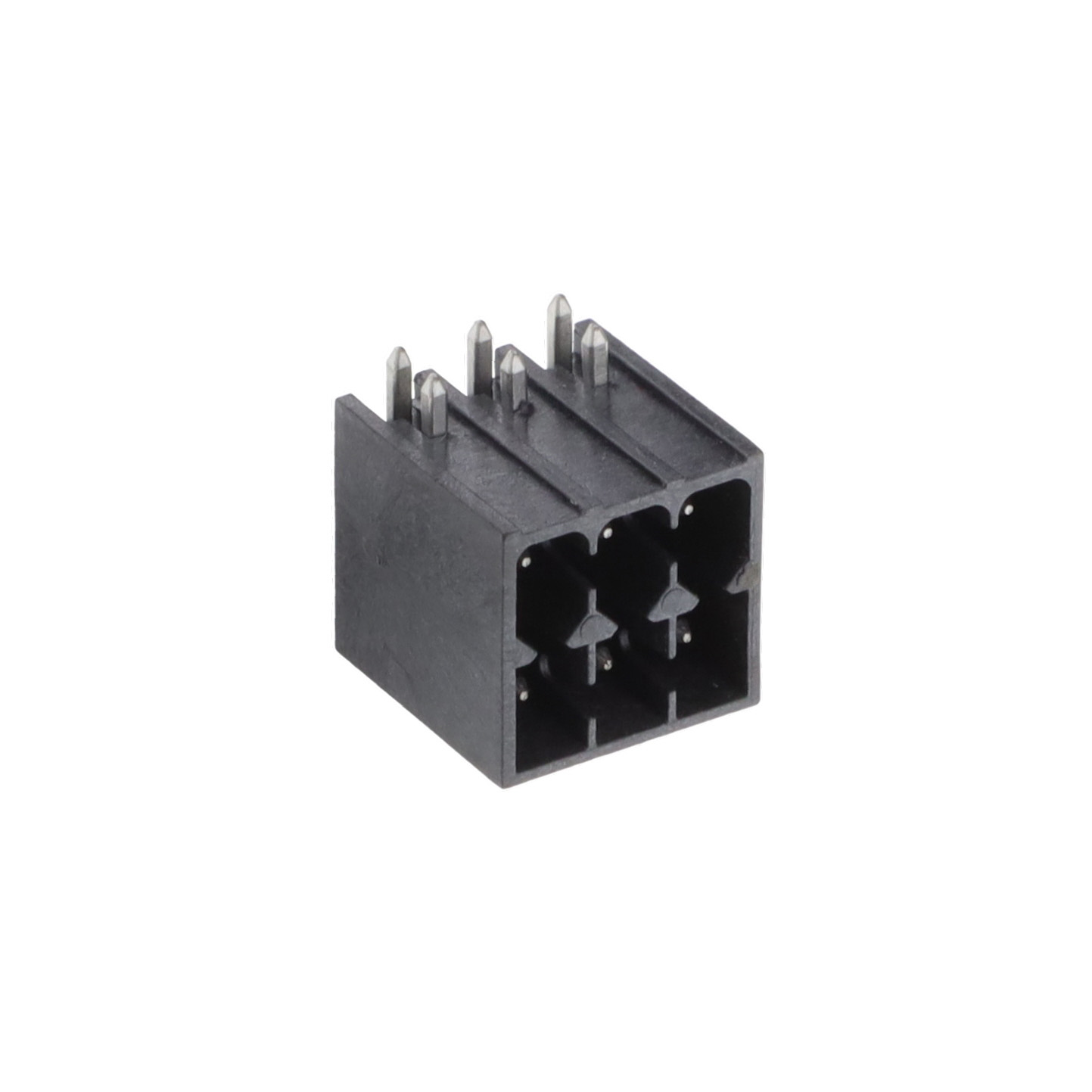

OSTNR061101
ActiveOn Shore Technology Inc.
3.5MM TERM BLOCK HEADER W/ FLANG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OSTNR061101
ActiveOn Shore Technology Inc.
3.5MM TERM BLOCK HEADER W/ FLANG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OSTNR061101 |
|---|---|
| Color | Black |
| Contact Material | Copper |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.079 in |
| Contact Tail Length | 2 mm |
| Current - UL | 8 A |
| Header Orientation | 90°, Right Angle |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.425 in |
| Insulation Height | 10.8 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 2 |
| Number of Positions | 6 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 3.5 mm |
| Pitch [x] | 0.138 in |
| Positions Per Level | 3 |
| Termination Style | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Voltage - UL | 150 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.16 | |
| 10 | $ 2.41 | |||
| 25 | $ 2.26 | |||
| 50 | $ 2.01 | |||
| 100 | $ 1.96 | |||
| 250 | $ 1.81 | |||
| 500 | $ 1.64 | |||
| 1000 | $ 1.45 | |||
| 5000 | $ 1.36 | |||
Description
General part information
OSTNR06 Series
6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
