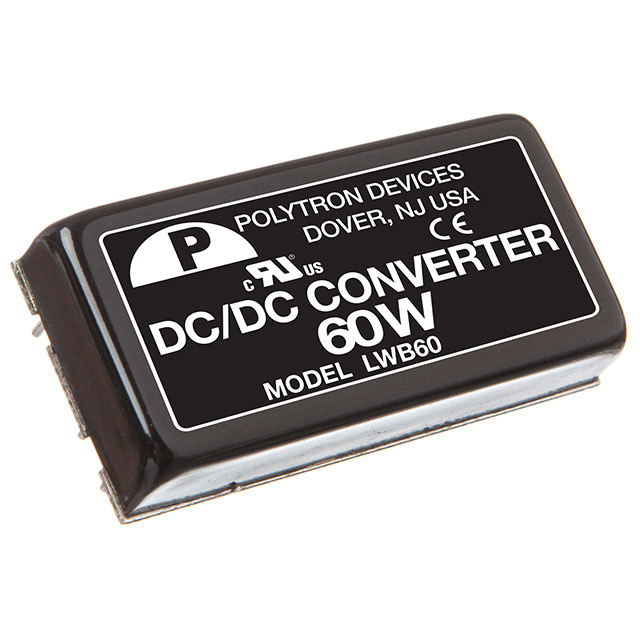

LWB60-48-15

Active

Polytron

DC DC CONVERTER +/-15V 60W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LWB60-48-15

Active

Polytron

DC DC CONVERTER +/-15V 60W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LWB60-48-15

Applications	ITE (Commercial)
Current - Output (Max) [Max]	2 A
Current - Output (Max) [Max]	2 A
Efficiency	91 %
Features	OVP, OTP, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	60 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

LWB60 Series

Part	Voltage - Output 2	Number of Outputs	Voltage - Isolation	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Mounting Type	Voltage - Input (Max) [Max]	Power (Watts)	Applications	Features	Package / Case	Voltage - Input (Min) [Min]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Current - Output (Max) [Max]	Current - Output (Max)
Polytron LWB60-24-12	-12 V	2	1.6 kV	2.5 A	2.5 A	Through Hole	36 V	60 W	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP	6-DIP Module	9 V	Isolated Module	85 °C	-40 °C	91 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	12 V
Polytron LWB60-48-15	-15 V	2	1.6 kV		2 A	Through Hole	75 V	60 W	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP	6-DIP Module	18 V	Isolated Module	85 °C	-40 °C	91 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	15 V	2 A
Polytron LWB60-48S12		1	1.6 kV			Through Hole	75 V	60 W	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP	6-DIP Module	18 V	Isolated Module	85 °C	-40 °C	92 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	12 V	5 A
Polytron LWB60-48-24	-24 V	2	1.6 kV			Through Hole	75 V	60 W	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP	6-DIP Module	18 V	Isolated Module	85 °C	-40 °C	91 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	24 V		1.25 A
Polytron LWB60-24S24		1	1.6 kV			Through Hole	36 V	60 W	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP	6-DIP Module	9 V	Isolated Module	85 °C	-40 °C	92 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	24 V	2.5 A
Polytron LWB60-24-24	-24 V	2	1.6 kV			Through Hole	36 V	60 W	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP	6-DIP Module	9 V	Isolated Module	85 °C	-40 °C	91 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	24 V		1.25 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 185.78

Description

General part information

LWB60 Series

Isolated Module DC DC Converter 2 Output 15V -15V 2A, 2A 18V - 75V Input
