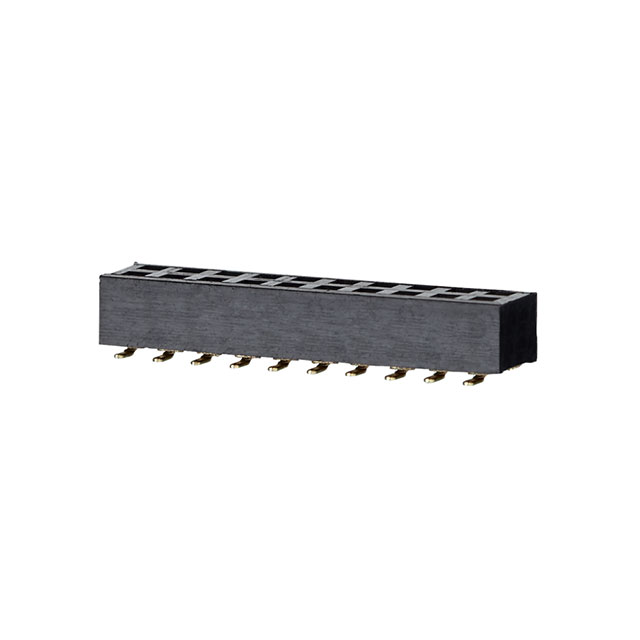

FM20B06VBDN

Active

METZ CONNECT USA Inc.

RECEPTACLE, SMT, DUAL ROW, 1.27

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

RECEPTACLE, SMT, DUAL ROW, 1.27

Technical Specifications

Parameters and characteristics for this part

Specification	FM20B06VBDN

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Ingress Protection	IP00
Insulation Color	Black
Insulation Height	0.084 in
Insulation Height	2.14 mm
Insulation Material	Polyamide (PA6), Nylon 6
Mounting Type	Surface Mount
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder

Part	Insulation Material	Connector Type	Number of Positions Loaded	Fastening Type	Insulation Color	Mounting Type	Number of Positions	Termination	Contact Shape	Contact Material	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Type	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection
METZ CONNECT USA Inc. FM20B06VBDN	Polyamide (PA6) Nylon 6	Receptacle	All	Push-Pull	Black	Surface Mount	12	Solder	Square	Copper Alloy	0.084 in	2.14 mm	0.05 in	1.27 mm	Flash	Female Socket	Gold	0.05 in	1.27 mm	2	-40 °C	105 ░C	IP00

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
