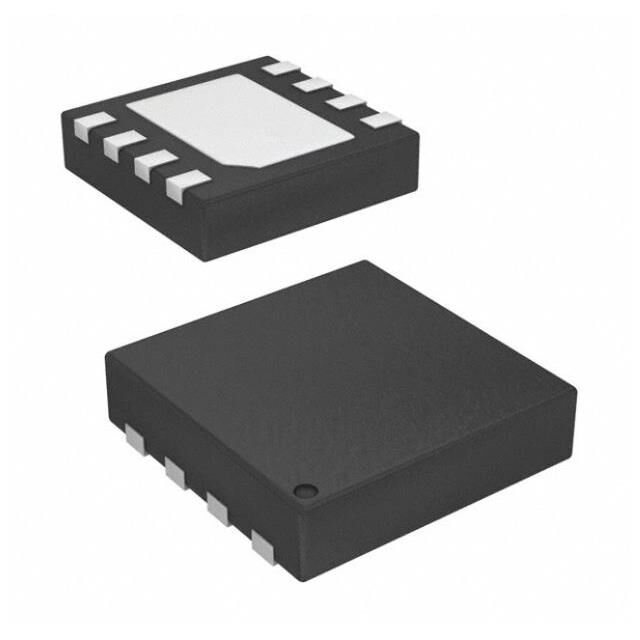

DS1341T+T&R

Active

Analog Devices Inc./Maxim Integrated

IC RTC CLK/CALENDAR I2C 8TDFN

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

IC RTC CLK/CALENDAR I2C 8TDFN

Technical Specifications

Parameters and characteristics for this part

Specification	DS1341T+T&R

Current - Timekeeping (Max) [Max]	0.6 µA
Current - Timekeeping (Max) [Min]	0.5 µA
Features	Leap Year, Square Wave Output, Alarm
Interface	I2C, 2-Wire Serial
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-WDFN Exposed Pad
Supplier Device Package	8-TDFN (3x3)
Time Format	HH:MM:SS (12/24 hr)
Type	Clock/Calendar
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	1.8 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Features	Mounting Type	Type	Supplier Device Package	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Timekeeping (Max) [Min]	Current - Timekeeping (Max) [Max]	Time Format	Package / Case [custom]	Package / Case
Analog Devices Inc./Maxim Integrated DS1341T+T&R	85 °C	-40 °C	2-Wire Serial I2C	Alarm Leap Year Square Wave Output	Surface Mount	Clock/Calendar	8-TDFN (3x3)	8-WDFN Exposed Pad	1.8 V	5.5 V	0.5 µA	0.6 µA	HH:MM:SS (12/24 hr)
Analog Devices Inc./Maxim Integrated DS1341U+	85 °C	-40 °C	2-Wire Serial I2C	Alarm Leap Year Square Wave Output	Surface Mount	Clock/Calendar	8-uMAX/uSOP	8-MSOP 8-TSSOP	1.8 V	5.5 V	0.5 µA	0.6 µA	HH:MM:SS (12/24 hr)	0.118 in	3 mm
Analog Devices Inc./Maxim Integrated DS1341U+T&R	85 °C	-40 °C	2-Wire Serial I2C	Alarm Leap Year Square Wave Output	Surface Mount	Clock/Calendar	8-uMAX/uSOP	8-MSOP 8-TSSOP	1.8 V	5.5 V	0.5 µA	0.6 µA	HH:MM:SS (12/24 hr)	0.118 in	3 mm
