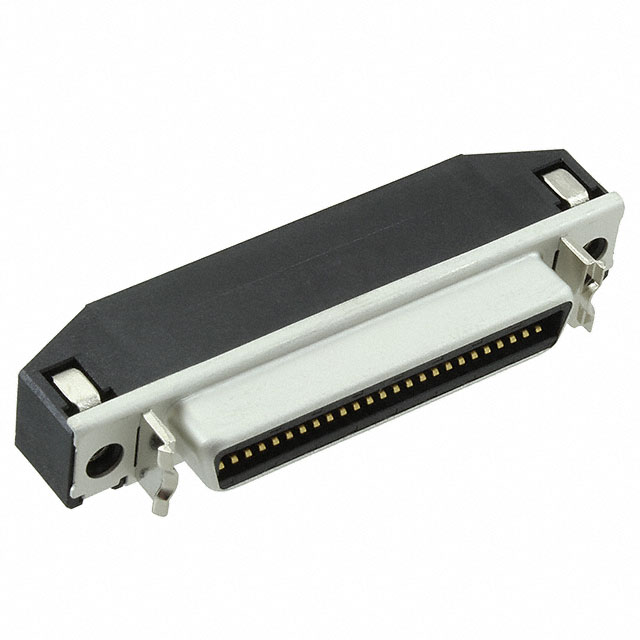

DF02R050NA3
ActiveJAE Electronics
CONN RCPT 50POS R/A SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF02R050NA3
ActiveJAE Electronics
CONN RCPT 50POS R/A SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF02R050NA3 |
|---|---|
| Connector Style | Outer Shroud Contacts |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell |
| Flange Feature | 2.6 M |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.42 | |
| 10 | $ 5.81 | |||
| 25 | $ 5.49 | |||
| 40 | $ 5.35 | |||
| 100 | $ 5.09 | |||
| 300 | $ 4.55 | |||
| 500 | $ 4.28 | |||
| 1000 | $ 3.75 | |||
| 2400 | $ 3.56 | |||
Description
General part information
DF02R050 Series
50 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder
