TO-41-040

Active

Bivar Inc.

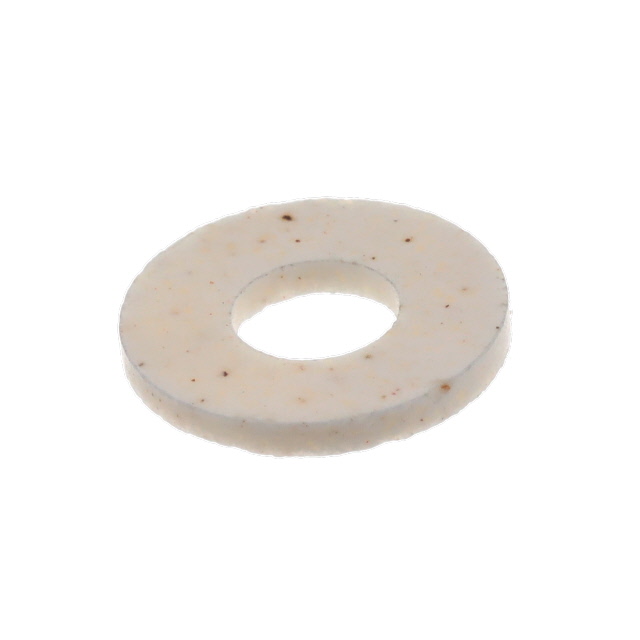

DISS-O-PAD, TO-41, ROUND, 0.36 OD, 0.156, ID, 0.04 THICK, WAX / BAG

Search across all available documentation for this part.

Active

Bivar Inc.

DISS-O-PAD, TO-41, ROUND, 0.36 OD, 0.156, ID, 0.04 THICK, WAX / BAG

Technical Specifications

Parameters and characteristics for this part

Specification	TO-41-040

Color	Natural
Diameter - Inside [diameter]	3.96 mm
Diameter - Inside [diameter]	0.156 in
Diameter - Outside [diameter]	9.14 mm
Diameter - Outside [diameter]	0.36 in
Features	Wash Away
Height [z]	0.039 in
Height [z]	1 mm
Length	1 mm
Length	0.039 in
Shape	Tubular
Type	Spacer
Usage	General Purpose - Axial, Radial

Part	Length	Length	Features	Color	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Shape	Height [z]	Height [z]	Usage
Bivar Inc. TO-41-040	1 mm	0.039 in	Wash Away	Natural	9.14 mm	0.36 in	Spacer	3.96 mm	0.156 in	Tubular	0.039 in	1 mm	General Purpose - Axial Radial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Component Spacer General Purpose - Axial, Radial Tubular 0.039" (1.00mm) Natural

Technical documentation and resources
