CTD432-50AC

Active

Allegro MicroSystems

EVAL BOARD FOR CT432

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsXtremeSense™ TMR technology

CTD432-50AC

Active

Allegro MicroSystems

EVAL BOARD FOR CT432

Deep-Dive with AI

DocumentsXtremeSense™ TMR technology

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CTD432-50AC

Embedded	False
Interface	Analog
Sensing Range [Max]	50 A
Sensing Range [Min]	-50 A
Sensitivity	40 mV/mT
Sensor Type	Current Sensor
Supplied Contents	Board(s)
Utilized IC / Part	CT432
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.75 V

CT432 Series

Part	Supplied Contents	Voltage - Supply [Min]	Voltage - Supply [Max]	Utilized IC / Part	Sensing Range [Min]	Sensing Range [Max]	Sensitivity	Interface	Sensor Type	Current - Supply (Max) [Max]	For Measuring	Output	Mounting Type	Response Time	Polarization	Accuracy	Linearity	Supplier Device Package	Package / Case [x]	Package / Case	Package / Case [y]	Number of Channels	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Current - Sensing
Allegro MicroSystems CTD432-50AC	Board(s)	4.75 V	5.5 V	CT432	-50 A	50 A	40 mV/mT	Analog	Current Sensor
Allegro MicroSystems CT432-HSWF50DR		4.75 V	5.5 V				80 mV/A		Magnetoresistive	9 mA	AC/DC	Ratiometric Voltage	Surface Mount	300 ns	Unidirectional	0.7 %	0.2 %	16-SOIC	0.295 in	16-SOIC	7.5 mm	1	DC ~ 1MHz	125 °C	-40 °C	50 A
Allegro MicroSystems CT432-HSWF65DR		4.75 V	5.5 V				61.5 mV/A		Magnetoresistive	9 mA	AC/DC	Ratiometric Voltage	Surface Mount	300 ns	Unidirectional	0.7 %	0.2 %	16-SOIC	0.295 in	16-SOIC	7.5 mm	1	DC ~ 1MHz	125 °C	-40 °C	65 A
Allegro MicroSystems CT432-HSWF20DR		4.75 V	5.5 V				200 mV/A		Magnetoresistive	9 mA	AC/DC	Ratiometric Voltage	Surface Mount	300 ns	Unidirectional	0.7 %	0.1 %	16-SOIC	0.295 in	16-SOIC	7.5 mm	1	DC ~ 1MHz	125 °C	-40 °C	20 A
Allegro MicroSystems CT432-HSWF50MR		4.75 V	5.5 V				40 mV/mT		Magnetoresistive	9 mA	AC/DC	Ratiometric Voltage	Surface Mount	300 ns	Bidirectional	0.5 %	0.1 %	16-SOIC	0.295 in	16-SOIC	7.5 mm	1	DC ~ 1MHz	125 °C	-40 °C	50 A
Allegro MicroSystems CT432-HSWF20MR		4.75 V	5.5 V				100 mV/g		Magnetoresistive	9 mA	AC/DC	Ratiometric Voltage	Surface Mount	300 ns	Bidirectional	0.5 %	0.1 %	16-SOIC	0.295 in	16-SOIC	7.5 mm	1	DC ~ 1MHz	125 °C	-40 °C	20 A
Allegro MicroSystems CT432-HSWF30MR		4.75 V	5.5 V				66.7 mV/A		Magnetoresistive	9 mA	AC/DC	Ratiometric Voltage	Surface Mount	300 ns	Bidirectional	0.5 %	0.1 %	16-SOIC	0.295 in	16-SOIC	7.5 mm	1	DC ~ 1MHz	125 °C	-40 °C	30 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 125.99

Description

General part information

CT432 Series

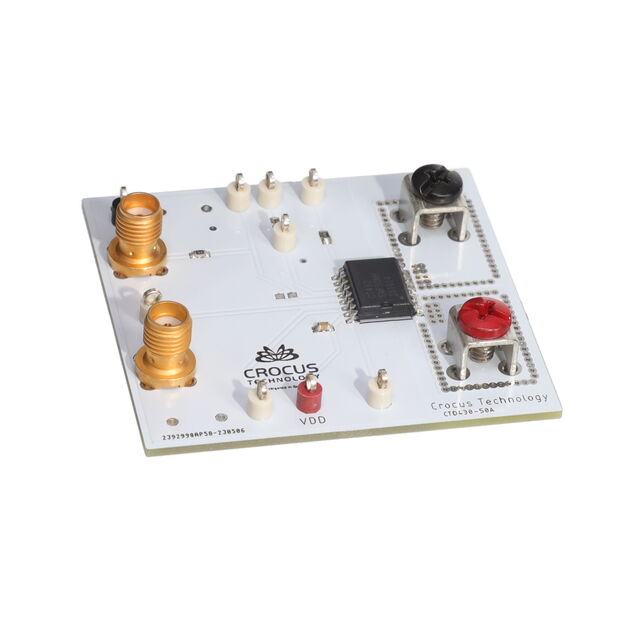

CT432 XtremeSense™ Crocus Technology Current Sensor Sensor Evaluation Board

Documents

Technical documentation and resources

XtremeSense™ TMR technology

Datasheet
