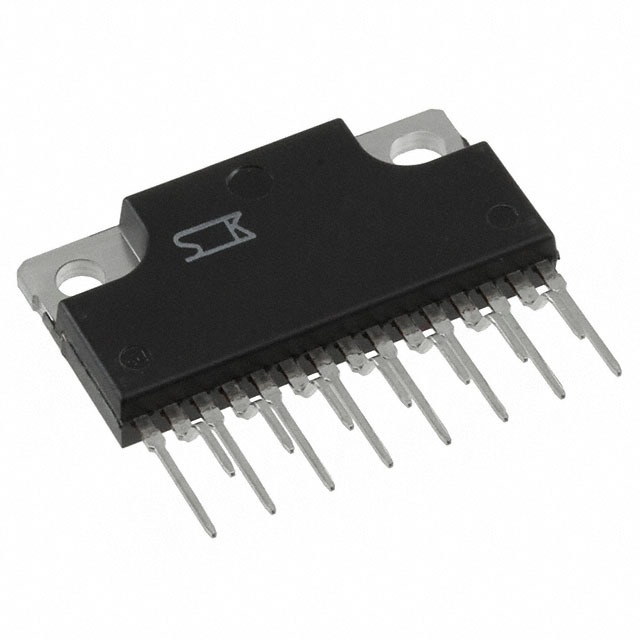

SLA5065 LF830

Active

Sanken Electric USA Inc.

MOSFET 4N-CH 60V 7A 15SIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SLA5065 LF830

Active

Sanken Electric USA Inc.

MOSFET 4N-CH 60V 7A 15SIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SLA5065 LF830

Configuration	4 N-Channel
Current - Continuous Drain (Id) @ 25°C	7 A
Drain to Source Voltage (Vdss)	60 V
Input Capacitance (Ciss) (Max) @ Vds	660 pF
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	15-SIP
Power - Max [Max]	4.8 W
Supplier Device Package	15-SIP
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	2 V

SLA50 Series

Part	Power - Max [Max]	Drain to Source Voltage (Vdss)	Package / Case	Mounting Type	Operating Temperature	Configuration	Input Capacitance (Ciss) (Max) @ Vds	Technology	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Supplier Device Package	Rds On (Max) @ Id, Vgs	FET Feature	Input Capacitance (Ciss) (Max) @ Vds [Max]	Rds On (Max) @ Id, Vgs [Max]	Transistor Type	Applications	Voltage - Rated	Current Rating (Amps)
Sanken Electric USA Inc. SLA5065 LF830	4.8 W	60 V	15-SIP	Through Hole	150 °C	4 N-Channel	660 pF	MOSFET (Metal Oxide)	7 A	2 V	15-SIP
Sanken Electric USA Inc. SLA5037	5 W	100 V	12-SIP Exposed Tab	Through Hole	150 °C	4 N-Channel	1630 pF	MOSFET (Metal Oxide)	10 A	2 V	12-SIP	80 mOhm	Logic Level Gate
Sanken Electric USA Inc. SLA5065	4.8 W	60 V	15-SIP Exposed Tab Formed Leads	Through Hole	150 °C	4 N-Channel	660 pF	MOSFET (Metal Oxide)	7 A	2 V	15-ZIP
Sanken Electric USA Inc. SLA5068	5 W	60 V	15-SIP Exposed Tab Formed Leads	Through Hole	150 °C	6 N-Channel (3-Phase Bridge)	660 pF	MOSFET (Metal Oxide)	7 A	2 V	15-ZIP
Sanken Electric USA Inc. SLA5061	5 W	60 V	12-SIP Exposed Tab	Through Hole	150 °C	3 N 3 P-Channel	460 pF 1200 pF	MOSFET (Metal Oxide)	6 A 10 A		12-SIP		Logic Level Gate
Sanken Electric USA Inc. SLA5064	5 W	60 V	12-SIP Exposed Tab	Through Hole	150 °C	3 N 3 P-Channel	460 pF 1200 pF	MOSFET (Metal Oxide)	10 A		12-SIP		Logic Level Gate
Sanken Electric USA Inc. SLA5041	5 W	200 V	12-SIP Exposed Tab	Through Hole	150 °C	4 N-Channel		MOSFET (Metal Oxide)	10 A		12-SIP		Logic Level Gate	850 pF	175 mOhm
Sanken Electric USA Inc. SLA5022			12-SIP Exposed Tab	Through Hole							12-SIP					3 N-Channel (3-Phase Bridge) 3 PNP Darlington	General Purpose	60 V	6 A
Sanken Electric USA Inc. SLA5059	5 W	60 V	12-SIP Exposed Tab	Through Hole	150 °C	3 N 3 P-Channel	150 pF 320 pF	MOSFET (Metal Oxide)	4 A	2 V	12-SIP		Logic Level Gate		550 mOhm
Sanken Electric USA Inc. SLA5073	5 W	60 V	15-SIP Exposed Tab Formed Leads	Through Hole	150 °C	6 N-Channel (3-Phase Bridge)	320 pF	MOSFET (Metal Oxide)	5 A	2 V	15-ZIP		Logic Level Gate

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.65
		10	$ 4.74
		100	$ 3.84
		500	$ 3.41
		1000	$ 2.92
		2000	$ 2.75

Description

General part information

SLA50 Series

Mosfet Array 60V 7A 4.8W Through Hole 15-SIP
