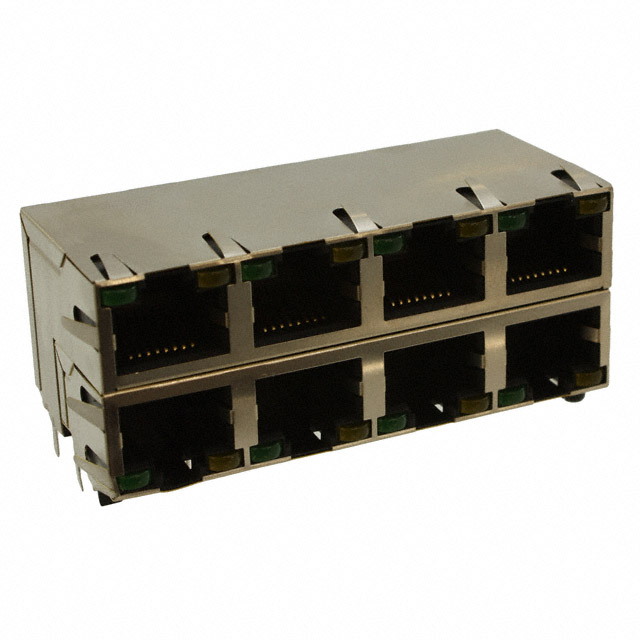

RJSAE538408
ActiveAmphenol ICC (Commercial Products)
CONN MOD JACK 8P8C R/A SHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
RJSAE538408
ActiveAmphenol ICC (Commercial Products)
CONN MOD JACK 8P8C R/A SHIELDED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RJSAE538408 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic |
| LED Color | Yellow, Green |
| Mounting Type | Through Hole |
| Number of Ports | 8 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | 90 ° |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Up and Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 20.05 | |
| 15 | $ 17.56 | |||
| 30 | $ 16.80 | |||
| 45 | $ 16.25 | |||
| 90 | $ 15.71 | |||
| 240 | $ 14.85 | |||
| 450 | $ 14.41 | |||
Description
General part information
RJSAE538 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger
