193R,GY

Active

Serpac

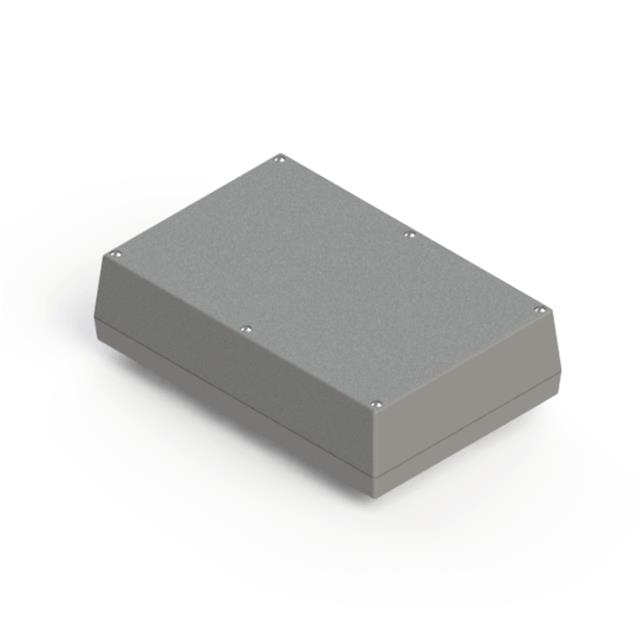

BOX ABS GRAY 9.5"L X 6.34"W

Deep-Dive with AI

Search across all available documentation for this part.

193R,GY

Active

Serpac

BOX ABS GRAY 9.5"L X 6.34"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	193R,GY

Area (L x W)	388 cm²
Area (L x W)	60.2 in²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	Front Access, PCB Supports
Height [z]	63.5 mm
Height [z]	2.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension	161.04 mm, 241.3 mm
Size / Dimension [x]	9.5 "
Size / Dimension [y]	6.34 "
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.72 lb
Weight	326.59 g

193R Series

Part	Ratings	Design	Material Flammability Rating	Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Container Type	Thickness	Thickness	Features	Color	Height [z]	Height [z]	Weight	Weight	Area (L x W)	Area (L x W)
Serpac 193R,GY	IP40 NEMA 1	Hand Held Split Sides	UL94 HB	Plastic ABS	9.5 "	6.34 "	161.04 mm 241.3 mm	Box	2.54 mm	0.1 in	Front Access PCB Supports	Gray	63.5 mm	2.5 in	0.72 lb	326.59 g	388 cm²	60.2 in²
Serpac 193RI,AL	IP40 NEMA 1	Hand Held Split Sides	UL94 HB	Plastic ABS	9.5 "	6.34 "	161.04 mm 241.3 mm	Box	2.54 mm	0.1 in	Front Access PCB Supports	Almond	63.5 mm	2.5 in	0.72 lb	326.59 g	388 cm²	60.2 in²
Serpac 193R,AL	IP40 NEMA 1	Hand Held Split Sides	UL94 HB	Plastic ABS	9.5 "	6.34 "	161.04 mm 241.3 mm	Box	2.54 mm	0.1 in	Front Access PCB Supports	Almond	63.5 mm	2.5 in	0.72 lb	326.59 g	388 cm²	60.2 in²
Serpac 193RI,GY	IP40 NEMA 1	Hand Held Split Sides	UL94 HB	Plastic ABS	9.5 "	6.34 "	161.04 mm 241.3 mm	Box	2.54 mm	0.1 in	Front Access PCB Supports	Gray	63.5 mm	2.5 in	0.72 lb	326.59 g	388 cm²	60.2 in²
Serpac 193RC,BK	IP40 NEMA 1	Hand Held Split Sides		Plastic Polycarbonate	9.5 "	6.34 "	161.04 mm 241.3 mm	Box	2.54 mm	0.1 in	Front Access PCB Supports	Black Clear Cover/Door	63.5 mm	2.5 in	0.72 lb	326.59 g	388 cm²	60.2 in²
Serpac 193R,BK	IP40 NEMA 1	Hand Held Split Sides	UL94 HB	Plastic ABS	9.5 "	6.34 "	161.04 mm 241.3 mm	Box	2.54 mm	0.1 in	Front Access PCB Supports	Black	63.5 mm	2.5 in	0.72 lb	326.59 g	388 cm²	60.2 in²
Serpac 193RC,AL	IP40 NEMA 1	Hand Held Split Sides		Plastic Polycarbonate	9.5 "	6.34 "	161.04 mm 241.3 mm	Box	2.54 mm	0.1 in	Front Access PCB Supports		63.5 mm	2.5 in	0.72 lb	326.59 g	388 cm²	60.2 in²
Serpac 193RI,BK	IP40 NEMA 1	Hand Held Split Sides	UL94 HB	Plastic ABS	9.5 "	6.34 "	161.04 mm 241.3 mm	Box	2.54 mm	0.1 in	Front Access PCB Supports	Black	63.5 mm	2.5 in	0.72 lb	326.59 g	388 cm²	60.2 in²

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.00

Description

General part information

193R Series

Box Plastic, ABS Gray Hand Held, Split Sides 9.500" L x 6.340" W (241.30mm x 161.04mm) X 2.500" (63.50mm)

Documents

Technical documentation and resources

No documents available
