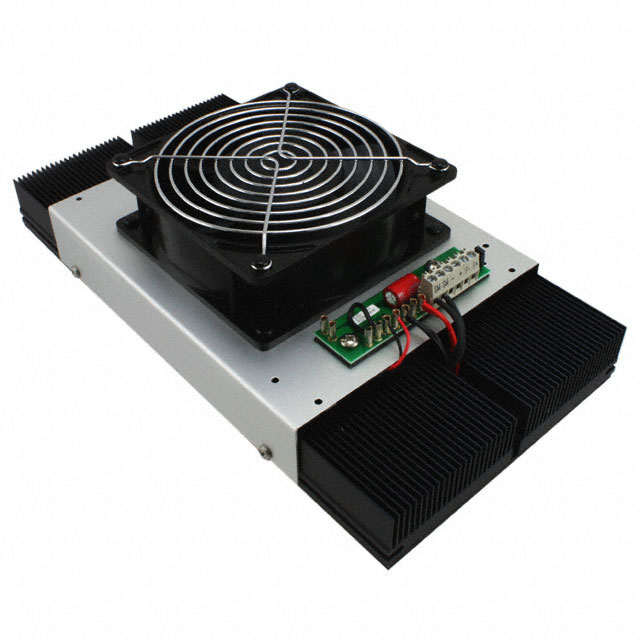

LA-160-24-02-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY LIQUID-AIR 160W
Deep-Dive with AI
Search across all available documentation for this part.
LA-160-24-02-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY LIQUID-AIR 160W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LA-160-24-02-00-00 |
|---|---|
| Current | 7.4 A |
| Dimensions - Overall [x] | 300 mm |
| Dimensions - Overall [y] | 152 mm |
| Dimensions - Overall [z] | 105 mm |
| Fan Location | Warm Side |
| Heat Transfer Type | Liquid to Air |
| Operating Temperature [Max] | 46 °C |
| Operating Temperature [Min] | -10 °C |
| Power - Cooling | 160 W |
| Power - Input | 178 W |
| Voltage | 24 V |
| Weight | 3.5 kg |
| Weight | 7.7 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 761.94 | |
| 5 | $ 714.32 | |||
| 10 | $ 695.27 | |||
Description
General part information
LA-160-24 Series
Liquid to Air Thermoelectric Assembly 160 W
