AAAF5060QBFSURZGC

Active

Kingbright

LED RGB CLEAR SMD

Search across all available documentation for this part.

Active

Kingbright

LED RGB CLEAR SMD

Technical Specifications

Parameters and characteristics for this part

Specification	AAAF5060QBFSURZGC

Color	Red, Green, Blue
Configuration	Independent
Current - Test [custom]	30 mA
Current - Test [custom]	30 mA
Current - Test [custom]	50 mA
Height (Max) [Max] [z]	2.3 mm
Lens Color	Colorless
Lens Size [diameter]	4 mm
Lens Transparency	Clear
Millicandela Rating [custom]	500 mcd
Millicandela Rating [custom]	650 mcd
Millicandela Rating [custom]	350 mcd
Mounting Type	Surface Mount
Package / Case	6-SMD, J-Lead
Size / Dimension [x]	5 mm
Size / Dimension [y]	6 mm
Supplier Device Package	SMD
Viewing Angle	100 °
Voltage - Forward (Vf) (Typ) [custom]	3.3 V
Voltage - Forward (Vf) (Typ) [custom]	3.3 V
Voltage - Forward (Vf) (Typ) [custom]	1.9 V
Wavelength - Dominant	465 nm, 630 nm, 525 nm
Wavelength - Peak	461 nm, 650 nm, 515 nm

Part	Height (Max) [Max] [z]	Configuration	Mounting Type	Package / Case	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Dominant	Wavelength - Peak	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Color	Lens Color	Size / Dimension [y]	Size / Dimension [x]	Lens Transparency	Lens Size [diameter]	Supplier Device Package	Viewing Angle	Voltage - Forward (Vf) (Typ)
Kingbright AAAF5060QBFSURZGC	2.3 mm	Independent	Surface Mount	6-SMD J-Lead	500 mcd	650 mcd	350 mcd	465 nm 525 nm 630 nm	461 nm 515 nm 650 nm	30 mA	30 mA	50 mA	3.3 V	3.3 V	1.9 V	Blue Green Red	Colorless	6 mm	5 mm	Clear	4 mm	SMD	100 °
Kingbright AAAF5060BRGS-11	2.3 mm	Independent	Surface Mount	6-SMD J-Lead	300 mcd	650 mcd	180 mcd	470 nm 525 nm 621 nm	468 nm 515 nm 630 nm	20 mA	20 mA	20 mA				Blue Green Red	Colorless	5 mm	6 mm	Clear	4 mm	SMD	100 °	2 V 3.3 V 3.3 V
Kingbright AAAF5060QBFSURZGS	2.3 mm	Independent	Surface Mount	6-SMD J-Lead	800 mcd	1000 mcd	400 mcd	465 nm 525 nm 630 nm	461 nm 515 nm 650 nm	30 mA	30 mA	50 mA	3.3 V	3.3 V	1.9 V	Blue Green Red	Colorless	6 mm	5 mm	Clear	4 mm	SMD	100 °
Kingbright AAAF5060QBDZGSEEC	2.3 mm	Independent	Surface Mount	6-SMD J-Lead	1000 mcd	650 mcd	250 mcd	470 nm 525 nm 621 nm	468 nm 515 nm 630 nm	30 mA	30 mA	50 mA				Blue Green Red	Colorless	6 mm	5 mm	Clear	4 mm	SMD	100 °	2 V 3.3 V 3.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

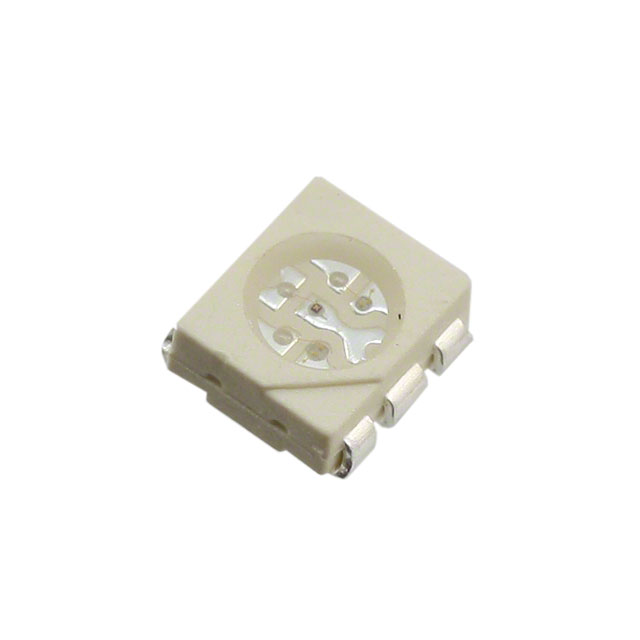

Red, Green, Blue (RGB) 630nm Red, 525nm Green, 465nm Blue LED Indication - Discrete 1.9V Red, 3.3V Green, 3.3V Blue 6-SMD, J-Lead
