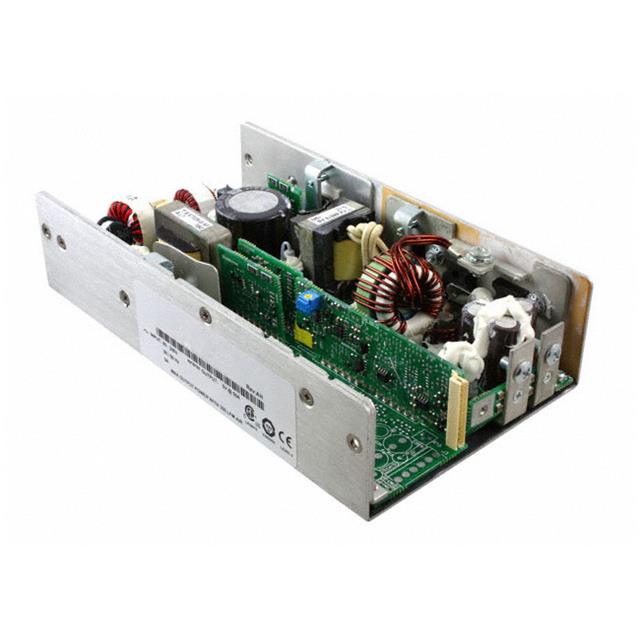

PFC250-1015G

Active

EOS Power India Private Ltd

AC/DC CONVERTER 15V 250W

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

AC/DC CONVERTER 15V 250W

Technical Specifications

Parameters and characteristics for this part

Specification	PFC250-1015G

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	18.3 A
Efficiency	75 %
Features	Universal Input, Remote Sense, Adjustable Output, PFC
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	250 W
Size / Dimension [x]	8.5 in
Size / Dimension [x]	215.9 mm
Size / Dimension [y]	4.75 in
Size / Dimension [y]	120.7 mm
Size / Dimension [z]	50.8 mm
Size / Dimension [z]	2 "
Type	Enclosed
Voltage - Isolation	2.6 kV
Voltage - Output 1	15 V

Part	Voltage - Isolation	Type	Operating Temperature [Max]	Approval Agency	Current - Output 1	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Efficiency	Number of Outputs	Voltage - Output 1	Mounting Type	Power (Watts)	Applications	Voltage - Output 3	Voltage - Output 2	Current - Output 3	Voltage - Output 4	Current - Output 2	Current - Output 4
EOS Power India Private Ltd PFC250-1015G	2.6 kV	Enclosed	70 °C	CE	18.3 A	50.8 mm	2 "	8.5 in	4.75 in	215.9 mm	120.7 mm	Adjustable Output PFC Remote Sense Universal Input	75 %	1	15 V	Chassis Mount	250 W	ITE (Commercial)
EOS Power India Private Ltd PFC250-1015	2.6 kV	Enclosed	70 °C	CE	18.3 A	50.8 mm	2 "	8.5 in	4.75 in	215.9 mm	120.7 mm	Adjustable Output PFC Remote Sense Universal Input	75 %	1	15 V	Chassis Mount	250 W	ITE (Commercial)
EOS Power India Private Ltd PFC250-1024G	2.6 kV	Enclosed	70 °C	CE	10.5 A	50.8 mm	2 "	8.5 in	4.75 in	215.9 mm	120.7 mm	Adjustable Output PFC Remote Sense Universal Input	75 %	1	24 V	Chassis Mount	250 W	ITE (Commercial)
EOS Power India Private Ltd PFC250-1024	2.6 kV	Enclosed	70 °C	CE	10.5 A	50.8 mm	2 "	8.5 in	4.75 in	215.9 mm	120.7 mm	Adjustable Output PFC Remote Sense Universal Input	75 %	1	24 V	Chassis Mount	250 W	ITE (Commercial)
EOS Power India Private Ltd PFC250-4530G	2.6 kV	Enclosed	70 °C	CE	40 A	50.8 mm	2 "	8.5 in	4.75 in	215.9 mm	120.7 mm	Adjustable Output PFC Remote Sense Universal Input	75 %	4	5 V	Chassis Mount	250 W	ITE (Commercial)	12 V	3.3 V	6 A	12 V	20 A	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 15V 85 ~ 264 VAC Input
