PB-2A-DC-2-B

Active

Switch Components

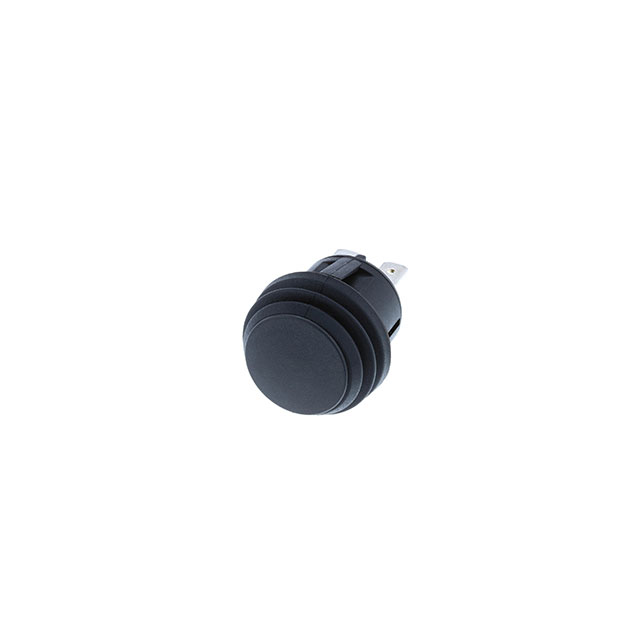

SWITCH: PUSH-BUTTON; POS: 2; DPST; 20A/14VDC; BLACK; ILLUMIN: NONE

Search across all available documentation for this part.

Active

Switch Components

SWITCH: PUSH-BUTTON; POS: 2; DPST; 20A/14VDC; BLACK; ILLUMIN: NONE

Technical Specifications

Parameters and characteristics for this part

Specification	PB-2A-DC-2-B

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPST
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A, 20 A
Electrical Life	6000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	10000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	14 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Current Rating (Amps)	Voltage Rating - DC	Voltage Rating - AC	Switch Function	Mounting Type	Ingress Protection	Mechanical Life	Actuator Marking	Termination Style	Circuit	Color - Actuator/Cap	Electrical Life	Actuator Type	Panel Cutout Dimensions [diameter]
Switch Components PB-2A-DC-2-B	-25 °C	85 °C	Standard	10 A 20 A	14 V	125 V	On-Off	Panel Mount Snap-In	IP65 - Dust Tight Water Resistant	10000 Steps	No Marking	Quick Connect - 0.187" (4.7mm)	DPST	Black	6000 Cycles	Button Round	20.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.15
TME	N/A	1	$ 4.83

General part information

Pushbutton Switch DPST Standard Panel Mount, Snap-In
