BC-221-195-RD

Active

Big Cat Cables

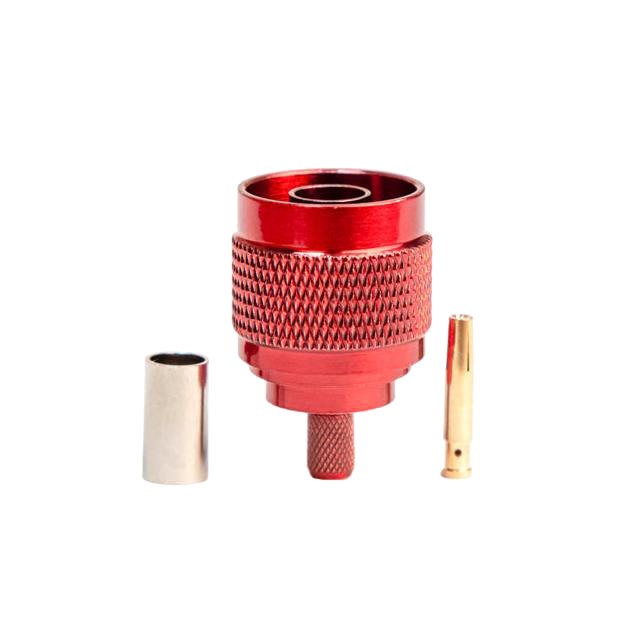

N TYPE REVERSE POLARITY MALE RED

Search across all available documentation for this part.

Active

Big Cat Cables

N TYPE REVERSE POLARITY MALE RED

Technical Specifications

Parameters and characteristics for this part

Specification	BC-221-195-RD

Body Material	Brass
Cable Group	LMR-195
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-N Type
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Red
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1000 VDC

Part	Connector Style	Mating Cycles	Contact Termination	Voltage Rating	Shield Termination	Frequency - Max [Max]	Center Contact Material	Dielectric Material	Body Material	Cable Group	Center Contact Plating	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Connector Type	Number of Ports	Impedance
Big Cat Cables BC-221-195-RD	RP-N Type	500	Crimp	1000 VDC	Crimp	6000 MHz	Brass	Polytetrafluoroethylene (PTFE)	Brass	LMR-195	Gold	Red	-65 ░C	165 °C	Free Hanging (In-Line)	Female Socket Plug	1	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-N Type Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
