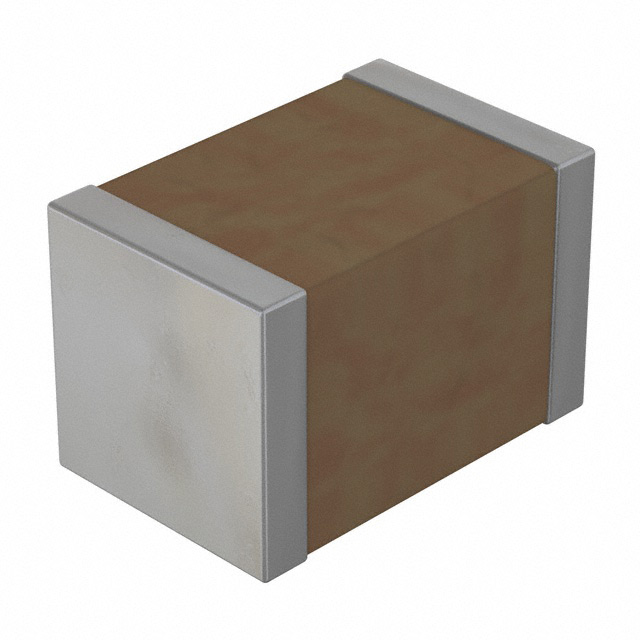

ES2215N102K502NTM
ActiveKnowles Johanson Manufacturing
CAP CER 1000PF 250V C0G 2215
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ES2215N102K502NTM |
|---|---|
| Applications | Safety |
| Capacitance | 0.001 µF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2215 |
| Package / Case | 5738 Metric |
| Ratings [custom] | 2 |
| Ratings [custom] | 1 |
| Size / Dimension [x] | 0.22 in |
| Size / Dimension [x] | 5.58 mm |
| Size / Dimension [y] | 3.81 mm |
| Size / Dimension [y] | 0.15 " |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) | 3.81 mm |
| Thickness (Max) [Max] | 0.15 " |
| Tolerance | 10 % |
| Voltage - Rated | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.73 | |
| 10 | $ 3.89 | |||
| 50 | $ 3.15 | |||
| 100 | $ 2.92 | |||
| Digi-Reel® | 1 | $ 5.73 | ||
| 10 | $ 3.89 | |||
| 50 | $ 3.15 | |||
| 100 | $ 2.92 | |||
| Tape & Reel (TR) | 500 | $ 2.52 | ||
| 1000 | $ 2.39 | |||
| 1500 | $ 2.33 | |||
| 2500 | $ 2.26 | |||
| 3500 | $ 2.22 | |||
Description
General part information
ES2215N Series
1000 pF ±10% 250VAC Ceramic Capacitor C0G, NP0 2215 (5738 Metric)
