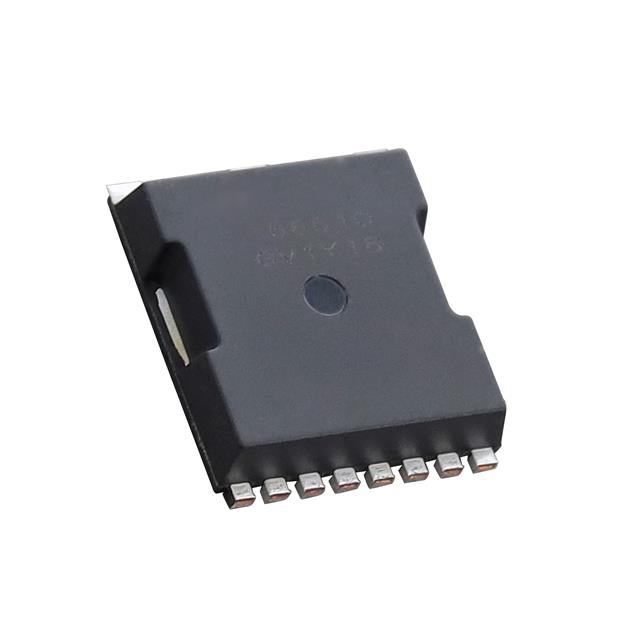

AOTL66912

Active

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 100V 49A/380A TOLLA

Search across all available documentation for this part.

Active

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 100V 49A/380A TOLLA

Technical Specifications

Parameters and characteristics for this part

Specification	AOTL66912

Current - Continuous Drain (Id) @ 25°C	380 A, 49 A
Drain to Source Voltage (Vdss)	100 V
Drive Voltage (Max Rds On, Min Rds On)	6 V, 10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	220 nC
Input Capacitance (Ciss) (Max) @ Vds	12500 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerSFN
Power Dissipation (Max)	8.3 W, 500 W
Rds On (Max) @ Id, Vgs [Max]	1.7 mOhm
Supplier Device Package	TOLLA
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	3.5 V

Part	Drive Voltage (Max Rds On, Min Rds On)	Gate Charge (Qg) (Max) @ Vgs	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id	Supplier Device Package	Power Dissipation (Max)	Mounting Type	Vgs (Max)	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs [Max]	FET Type
Alpha & Omega Semiconductor Inc. AOTL66912	6 V 10 V	220 nC	MOSFET (Metal Oxide)	-55 °C	175 ░C	8-PowerSFN	100 V	3.5 V	TOLLA	8.3 W 500 W	Surface Mount	20 V	49 A 380 A	12500 pF	1.7 mOhm	N-Channel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 100 V 49A (Ta), 380A (Tc) 8.3W (Ta), 500W (Tc) Surface Mount TOLLA
