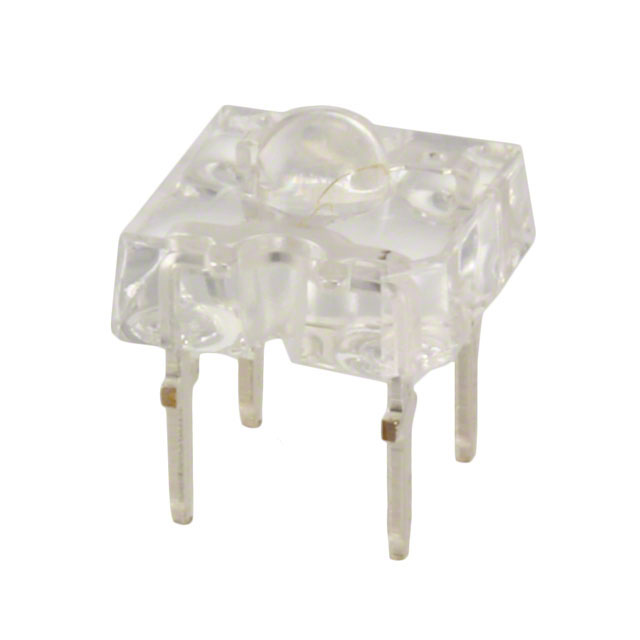

SSL-LX30448UWC

Active

Lumex Opto/Components Inc.

LED WHT CLR SQUARE TYPE LED T/H

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED WHT CLR SQUARE TYPE LED T/H

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Lens Transparency	Millicandela Rating	Color	Mounting Type	Voltage - Forward (Vf) (Typ)	Lens Color	Height (Max) [Max] [z]	Current - Test	Lens Style	Configuration	Package / Case	Package / Case	Package / Case	Wavelength - Peak	Lens Size [diameter]	Viewing Angle
Lumex Opto/Components Inc. SSL-LX30448UWC	Square Type LED	7.62 mm	7.62 mm	Clear	500 mcd	White	Through Hole	3.5 V	Colorless	6.3 mm	20 mA	Round with Domed Top	Standard	4-DIP	0.2 in	0.2 in	550 nm	3 mm	30 °
Lumex Opto/Components Inc. SSL-LX30448SRC	Square Type LED	7.62 mm	7.62 mm	Clear	1250 mcd	Red	Through Hole	2.25 V	Colorless	6.3 mm	20 mA	Round with Domed Top	Standard	4-DIP	0.2 in	0.2 in	660 nm	3 mm	50 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

White LED Indication - Discrete 3.5V 4-DIP (0.200", 5.08mm)

Technical documentation and resources

No documents available
