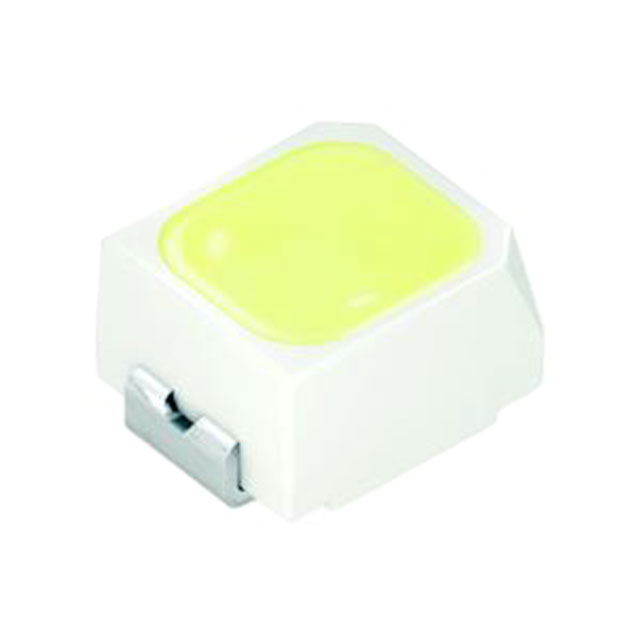

LW MVSG-AYBZ-FK0PN0-Z486-20-R18-Z
Activeams-OSRAM USA INC.
LED WHITE DIFFUSED SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LW MVSG-AYBZ-FK0PN0-Z486-20-R18-Z
Activeams-OSRAM USA INC.
LED WHITE DIFFUSED SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LW MVSG-AYBZ-FK0PN0-Z486-20-R18-Z |
|---|---|
| Color | White |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1.4 mm |
| Lens Size [x] | 1.7 mm |
| Lens Size [y] | 1.55 mm |
| Lens Style | Oval with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 2050 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [y] | 1.8 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.05 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.50 | |
| 10 | $ 0.33 | |||
| 100 | $ 0.22 | |||
| 1000 | $ 0.18 | |||
| Digi-Reel® | 1 | $ 0.50 | ||
| 10 | $ 0.33 | |||
| 100 | $ 0.22 | |||
| 1000 | $ 0.18 | |||
| Tape & Reel (TR) | 3000 | $ 0.18 | ||
Description
General part information
LWMVSG Series
White LED Indication - Discrete 3.05V 2-SMD, J-Lead
