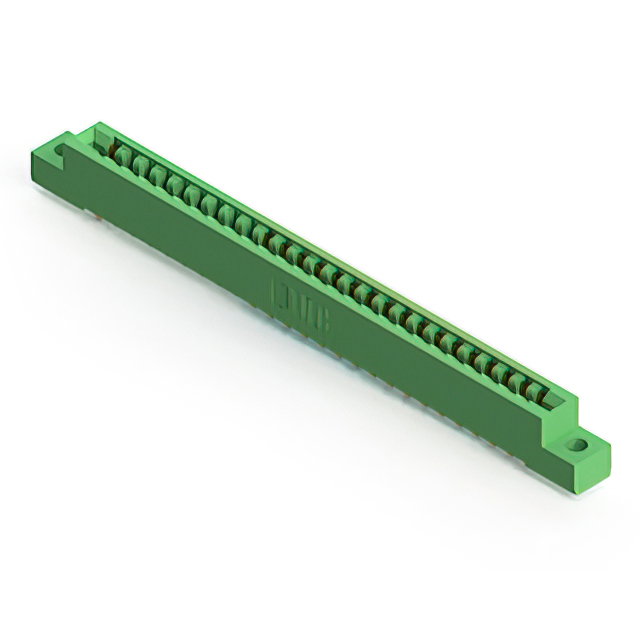

807-052-560-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 52POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
807-052-560-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 52POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 807-052-560-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 52 |
| Number of Positions/Bay/Row [custom] | 26 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
807-052 Series
...
| Part | Pitch [x] | Pitch [x] | Termination | Termination Rows | Card Type | Contact Material | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Color | Number of Positions | Read Out | Contact Finish | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Material - Insulation | Features | Number of Rows | Gender | Contact Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.156 in | 3.96 mm | Solder | 2 | Non Specified - Dual Edge | Copper Alloy | 26 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | 52 | Dual | Gold | Board Edge Straddle Mount | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Card Extender | 2 | Female | Semi Bellows | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | ||
EDAC Inc. | 0.156 in | 3.96 mm | Wire Wrap | 2 | Non Specified - Dual Edge | Copper Alloy | 26 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 52 | Dual | Tin | Through Hole | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 2 | Female | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | |||||||
EDAC Inc. | 0.156 in | 3.96 mm | Solder | 2 | Non Specified - Dual Edge | Copper Alloy | 26 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | 52 | Dual | Gold | Board Edge Straddle Mount | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Card Extender | 2 | Female | Semi Bellows | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | ||
EDAC Inc. | 0.156 in | 3.96 mm | Wire Wrap | 2 | Non Specified - Dual Edge | Copper Alloy | 26 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 52 | Dual | Tin | Through Hole | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 2 | Female | Semi Bellows | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Solder | 2 | Non Specified - Dual Edge | Copper Alloy | 26 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 52 | Dual | Tin | Board Edge Straddle Mount | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Card Extender | 2 | Female | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | ||||||
EDAC Inc. | 0.156 in | 3.96 mm | Solder | 2 | Non Specified - Dual Edge | Copper Alloy | 26 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | 52 | Dual | Gold | Board Edge Straddle Mount | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Card Extender | 2 | Female | Semi Bellows | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | ||
EDAC Inc. | 0.156 in | 3.96 mm | Solder Eyelet(s) | 2 | Non Specified - Dual Edge | Copper Alloy | 26 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 52 | Dual | Tin | Through Hole | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 2 | Female | Semi Bellows | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Wire Wrap | 2 | Non Specified - Dual Edge | Copper Alloy | 26 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 52 | Dual | Tin | Through Hole | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 2 | Female | Semi Bellows | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Solder | 2 | Non Specified - Dual Edge | Copper Alloy | 26 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 52 | Single | Tin | Through Hole Right Angle | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 2 | Female | Semi Bellows | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Solder | 2 | Non Specified - Dual Edge | Copper Alloy | 26 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 52 | Dual | Tin | Through Hole | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 2 | Female | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 96.28 | |
Description
General part information
807-052 Series
52 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
