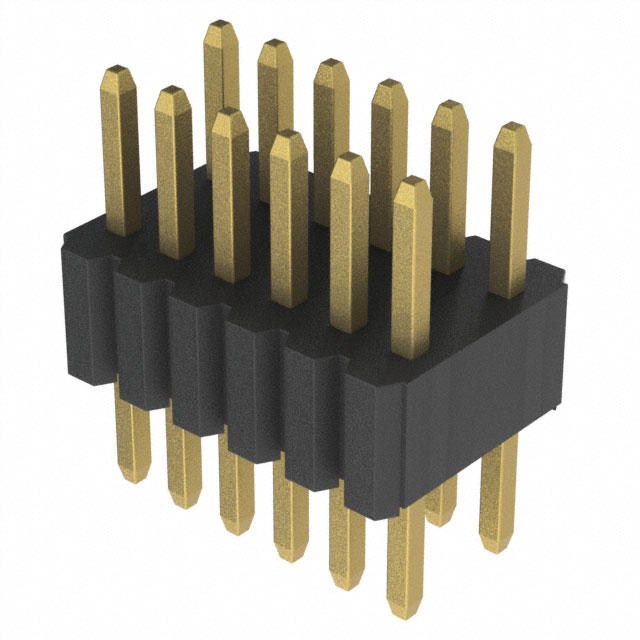

HPH2-B-12-UA

Active

Adam Tech

CONN HEADER VERT 12POS 1.27MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER VERT 12POS 1.27MM

Technical Specifications

Parameters and characteristics for this part

Specification	HPH2-B-12-UA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	3 mm
Contact Length - Mating	0.118 in
Contact Length - Post	2.67 mm
Contact Length - Post	0.105 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	8.2 mm
Overall Contact Length	0.323 in
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	250 VAC

Part	Number of Rows	Mounting Type	Insulation Color	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Shrouding	Number of Positions Loaded	Contact Finish - Mating	Contact Type	Connector Type	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Voltage Rating	Insulation Material	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Number of Positions	Contact Finish Thickness - Post	Contact Shape	Contact Finish Thickness - Mating	Fastening Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating
Adam Tech HPH2-B-12-UA	2	Through Hole	Black	8.2 mm	0.323 in	UL94 V-0	Unshrouded	All	Gold	Male Pin	Header	3 mm	0.118 in	2.67 mm	0.105 in	-40 °C	105 ░C	Brass	250 VAC	Thermoplastic	Solder	2.54 mm	0.1 in	Gold	12	Flash	Square	Flash	Push-Pull	0.1 in	2.54 mm	0.05 in	1.27 mm
Adam Tech HPH2-B-04-UA	2	Through Hole	Black	8.2 mm	0.323 in	UL94 V-0	Unshrouded	All	Gold	Male Pin	Header	3 mm	0.118 in	2.67 mm	0.105 in	-40 °C	105 ░C	Brass	250 VAC	Thermoplastic	Solder	2.54 mm	0.1 in	Gold	4	Flash	Square	Flash	Push-Pull	0.1 in	2.54 mm	0.05 in	1.27 mm
