1735930

Active

Phoenix Contact

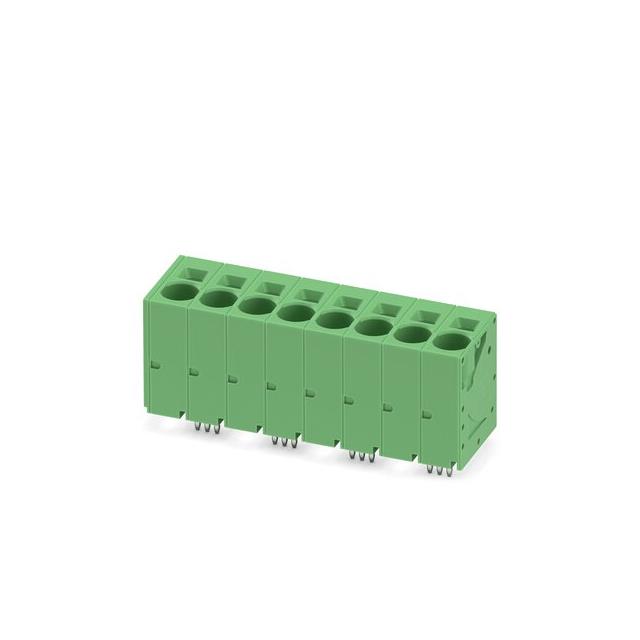

FIXED TERMINAL BLOCKS SPT 16/ 8-V-10-ZB 8P VERT MOUNT

Search across all available documentation for this part.

Active

Phoenix Contact

FIXED TERMINAL BLOCKS SPT 16/ 8-V-10-ZB 8P VERT MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	1735930

Color	Green
Current	66 A
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Vertical with Board
Mounting Type	Through Hole
Number of Levels	1
Pitch [x]	0.394 in
Pitch [x]	10 mm
Positions Per Level	8
Voltage	300 V
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	4 AWG
Wire Termination	Screwless - Spring Cage, Tension Clamp

Fixed Terminal Blocks SPT 16/ 8-V-10-ZB 8P VERT MOUNT

Part	Color	Wire Termination	Wire Gauge [Max]	Wire Gauge [Min]	Pitch [x]	Pitch [x]	Number of Levels	Voltage	Mounting Type	Positions Per Level	Current	Housing Material	Mating Orientation
Phoenix Contact 1735930	Green	Screwless - Spring Cage Tension Clamp	20 AWG	4 AWG	0.394 in	10 mm	1	300 V	Through Hole	8	66 A	Polyamide (PA) Nylon	Vertical with Board

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 28.99
Sager	N/A	50	$ 27.84

General part information

Fixed Terminal Blocks SPT 16/ 8-V-10-ZB 8P VERT MOUNT

Technical documentation and resources
