DQ12AB6FF30

Active

BANNER ENGINEERING

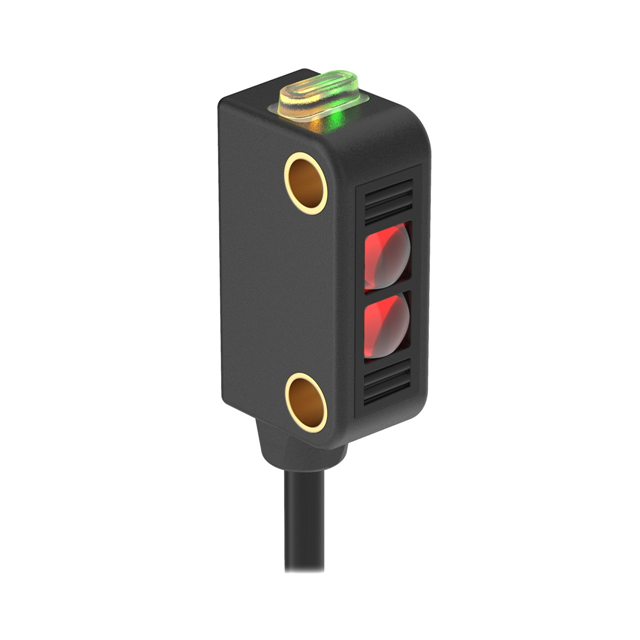

PHOTOSENSOR, FIXED FIELD, 30MM, NPN/PNP

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTOSENSOR, FIXED FIELD, 30MM, NPN/PNP

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Connection Method	Cable Length	Cable Length	Sensing Method	Sensing Distance	Sensing Distance	Ingress Protection	Light Source	Light Source	Response Time	Voltage - Supply [Max]	Voltage - Supply [Min]
BANNER ENGINEERING DQ12AB6FF30	55 °C	-20 C	NPN/PNP	Cable	78.74 in	2 m	Background Suppression	1.181 in	30 mm	IEC IP67	Red	645 nm	1.3 ms	30 VDC	10 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 101.00
Newark	Each	1	$ 103.88

General part information

Background Suppression Optical Sensor 1.181" (30mm) NPN/PNP

Technical documentation and resources
