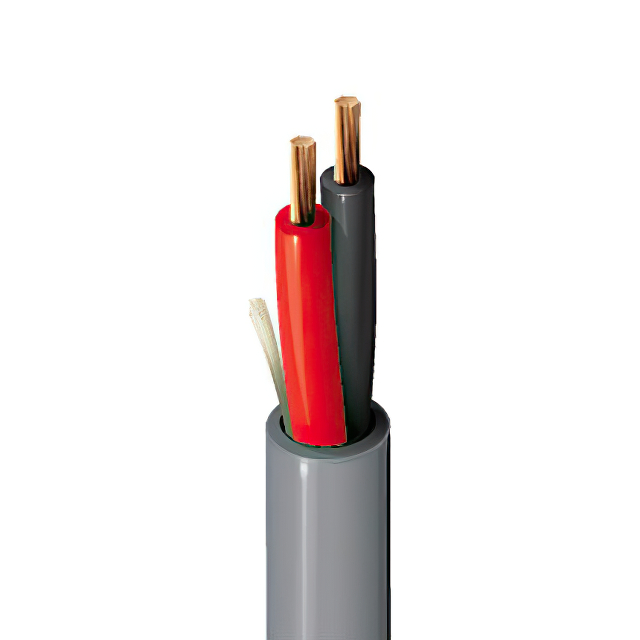

1307A 010U500

Active

Belden Inc.

CABLE SPKR 2COND 16AWG BLK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE SPKR 2COND 16AWG BLK

Technical Specifications

Parameters and characteristics for this part

Specification	1307A 010U500

Cable Type	Speaker
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Bare
Conductor Strand [custom]	34 AWG
Conductor Strand [custom]	65
Jacket (Insulation) Diameter [diameter]	5.33 mm
Jacket (Insulation) Diameter [diameter]	0.21 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Wire Gauge	16 AWG

Part	Number of Conductors	Conductor Insulation	Cable Type	Conductor Material	Wire Gauge	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Usage	Voltage	Length	Length
Belden Inc. 1307A 010U500	2	Polyolefin (PO)	Speaker	Copper Bare	16 AWG	Poly-Vinyl Chloride (PVC)	34 AWG	65	Black	500 '	152.4 m	5.33 mm	0.21 in
Belden Inc. 1307A 1SLU500	2	Polyethylene (PE)	Speaker	Copper Bare	16 AWG	Poly-Vinyl Chloride (PVC)	34 AWG	65		500 '	152.4 m	5.33 mm	0.21 in	0.33 mm	0.013 in	Direct Burial	Audio-Video Home	300 V
Belden Inc. 1307A N3UU500	2	Polyethylene (PE)	Speaker	Copper Bare	16 AWG	Poly-Vinyl Chloride (PVC)	34 AWG	65	Green	500 '	152.4 m	5.33 mm	0.21 in	0.33 mm	0.013 in	Direct Burial	Audio-Video Home	300 V
Belden Inc. 1307A 0101000	2	Polyethylene (PE)	Speaker	Copper Bare	16 AWG	Poly-Vinyl Chloride (PVC)	34 AWG	65	Black			5.33 mm	0.21 in	0.33 mm	0.013 in	Direct Burial	Audio-Video Home	300 V	1000 ft	304.8 m
Belden Inc. 1307A 0081000	2	Polyethylene (PE)	Speaker	Copper Bare	16 AWG	Poly-Vinyl Chloride (PVC)	34 AWG	65	Gray			5.33 mm	0.21 in	0.33 mm	0.013 in	Direct Burial	Audio-Video Home	300 V	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Speaker Cable Black 16 AWG 500.0' (152.4m)
