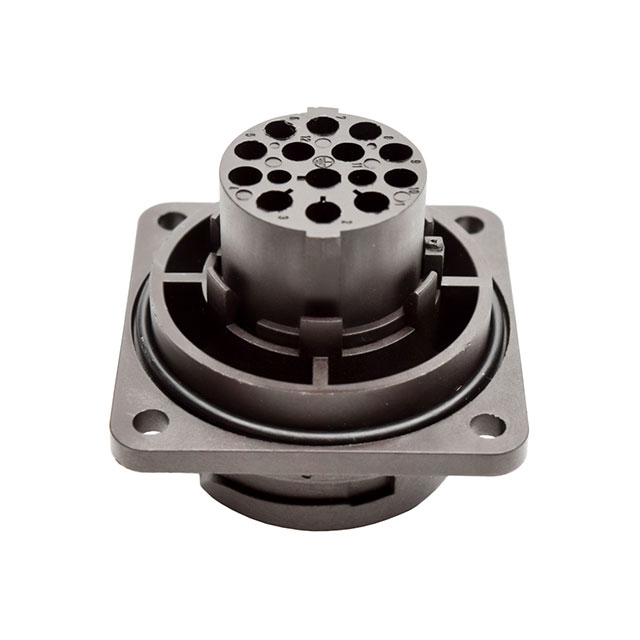

C01610C0120002

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG MALE 13POS PNL MT

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG MALE 13POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	C01610C0120002

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	2.5 mm, 1.6 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	13
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	2
Shielding	Unshielded
Type	For Male Pins

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Size	Shell Material	Contact Type	Type	Material Flammability Rating	Shielding	Note	Mounting Feature	Ingress Protection	Number of Positions	Shell Size - Insert	Orientation	Housing Color	Contact Shape	Fastening Type
Amphenol Tuchel Industrial C01610C0120002	Receptacle Housing	125 °C	-40 °C	1.6 mm 2.5 mm	Polyamide (PA66) Nylon 6/6	Crimp	For Male Pins	UL94 V-0	Unshielded	Contacts Not Included	Flange	IP65 - Dust Tight Water Resistant	13	2	N	Black	Circular	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 13.57

General part information

13 (12 + PE) Position Circular Connector Receptacle Housing Panel Mount
