MHDGWT-0000-000N0HK427G-SB01

Active

New Energy

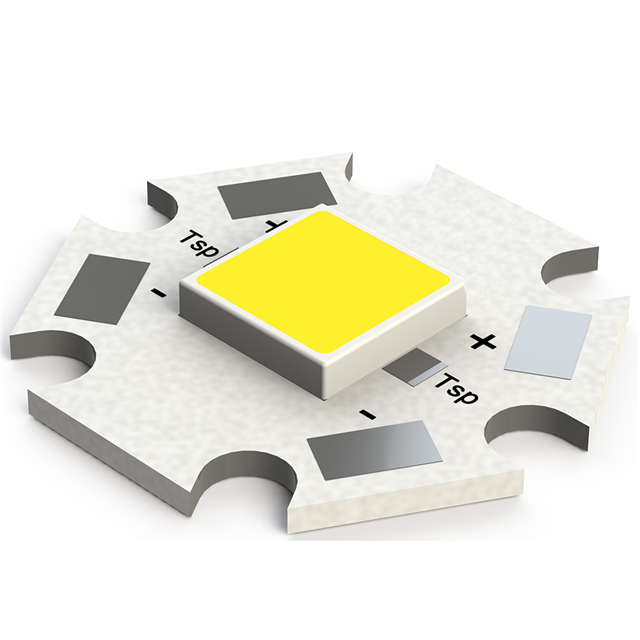

LED MOD MHD-G WHT STARBRD 2700K

Search across all available documentation for this part.

Active

New Energy

LED MOD MHD-G WHT STARBRD 2700K

Technical Specifications

Parameters and characteristics for this part

Specification	MHDGWT-0000-000N0HK427G-SB01

CCT (K)	2700 K
Color	White, Warm
Configuration	Starboard
CRI (Color Rendering Index)	80
Current - Max [Max]	500 mA
Current - Test	350 mA
Height [z]	1.5 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	105 lm/W
Luminous Flux @ Current/Temperature	1335 lm
Luminous Flux @ Current/Temperature [Max]	1380 lm
Luminous Flux @ Current/Temperature [Min]	1290 lm
Size / Dimension [diameter]	19.89 mm
Temperature - Test	85 °C
Type	LED Module
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	36.4 V

Part	Color	Lens Type	Voltage - Forward (Vf) (Typ)	Viewing Angle	Height [z]	Configuration	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Temperature - Test	Current - Test	CRI (Color Rendering Index)	CCT (K)	Type	Size / Dimension [diameter]	Current - Max [Max]	Lumens/Watt @ Current - Test
New Energy MHDGWT-0000-000N0HK427G-SB01	Warm White	Flat	36.4 V	115 °	1.5 mm	Starboard	1335 lm	1290 lm	1380 lm	85 °C	350 mA	80	2700 K	LED Module	19.89 mm	500 mA	105 lm/W
New Energy MHDGWT-0000-000N0BM440E-SB01	Neutral White	Flat	36.4 V	115 °	1.5 mm	Starboard	1538 lm			85 °C	350 mA	70	4000 K	LED Module	19.89 mm	500 mA	121 lm/W
New Energy MHDGWT-0000-000N0BN265E-SB01	Cool White	Flat	36.4 V	115 °	1.5 mm	Starboard	1650 lm	1590 lm	1710 lm	85 °C	350 mA	70	6500 K	LED Module	19.89 mm	500 mA	130 lm/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 10.94

General part information

LED Lighting COBs Engines Modules LED Module MHD-G White, Warm Starboard
