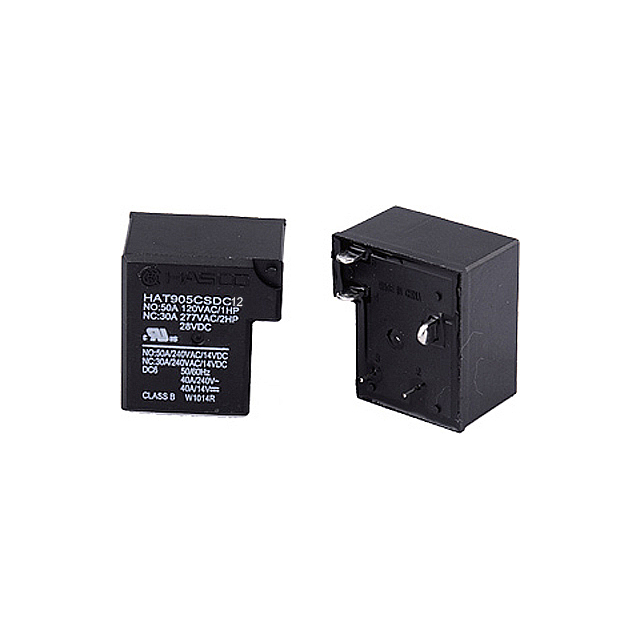

HAT905CSDC12
ActiveHasco Relays
RELAY SPDT 50A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HAT905CSDC12
ActiveHasco Relays
RELAY SPDT 50A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HAT905CSDC12 |
|---|---|
| Coil Current | 100 mA |
| Coil Insulation | Class B |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 50 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 10 ms |
| Switching Voltage [Max] | 277 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 19 | $ 2.47 | |
Description
General part information
HAT905 Series
Relay SPDT (1 Form C) 12VDC Coil Through Hole
