SCA610-E23H1A-6

Active

Murata Power Solutions Inc.

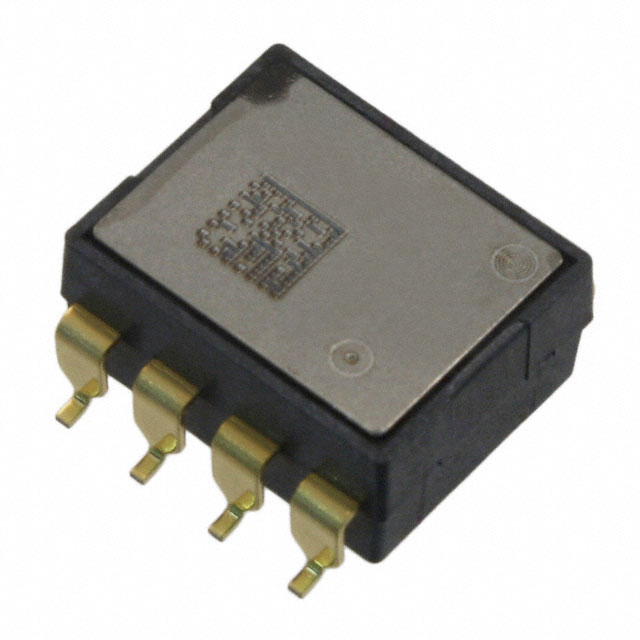

ACCELEROMETER 1.5G ANALOG 8SMD

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ACCELEROMETER 1.5G ANALOG 8SMD

Technical Specifications

Parameters and characteristics for this part

Part	Type	Axis [x]	Grade	Bandwidth	Supplier Device Package	Qualification	Output Type	Sensitivity (mV/g)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Package / Case	Acceleration Range	Sensitivity	Interface	Measuring Range	Bandwidth [Max]	Bandwidth [Min]	Axis	Voltage Rating [Max]	Voltage Rating [Min]
Murata Power Solutions Inc. SCA610-E23H1A-6	Analog	X	Automotive	50 Hz	8-SMD	AEC-Q100	Analog Voltage	1333 mV/g	125 °C	-40 °C	4.75 V	5.25 V	Surface Mount	8-SMD Module	1.5 g
Murata Power Solutions Inc. SCA610-C23H1A-1	Analog	X		50 Hz	8-SMD		Analog Voltage	1333 mV/g	125 °C	-40 °C	4.75 V	5.25 V	Surface Mount	8-SMD L-Bend	1.5 g
Murata Power Solutions Inc. SCA610-CA1H1G-1														8-SMD Module		2 mg/digit	Analog	90 °	28 Hz	8 Hz	X or Y	5.25 V	4.75 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Accelerometer X Axis ±1.5g 50Hz 8-SMD

Technical documentation and resources

No documents available
